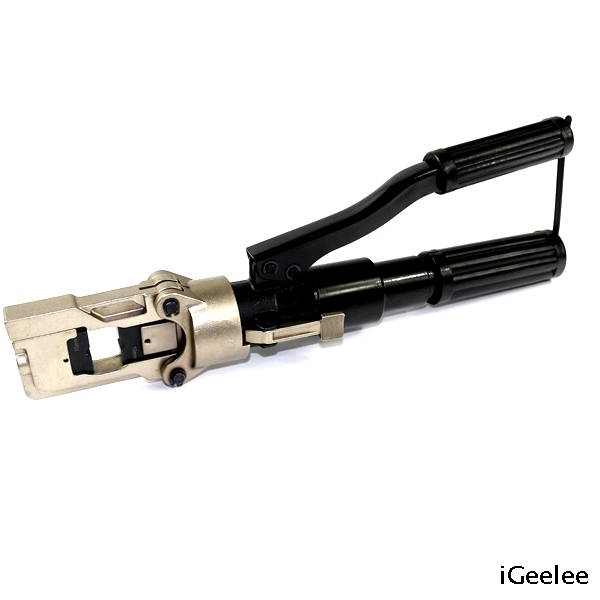

BEKU Type Hydraulic Cable Pressing Tool THS-150 for Crimping Copper/aluminum Lugs Range 10-150mm2
You are here: Home » Products » Wire Installation Tools » Cable Crimping Tools » BEKU Type Hydraulic Cable Pressing Tool THS-150 for Crimping Copper/aluminum Lugs Range 10-150mm2

BEKU Type Hydraulic Cable Pressing Tool THS-150 for Crimping Copper/aluminum Lugs Range 10-150mm2

Share to:

The built-in safety valve will by-pass the oil supply when the maximum pressure is reached and the pressure release system can easily be operated at any stage of compression.

  • THS-150
  • iGeelee
Quantity:

BEKU Type Hydraulic Cable Pressing Tool THS-150 for Crimping Copper/aluminum Lugs Range 10-150mm2

       Crimping range        10-150mm2
       Crimping force        60KN
       Crimping type        hexagon crimping
       Stroke        15mm
       Length        370mm
       Weight        2.4kg

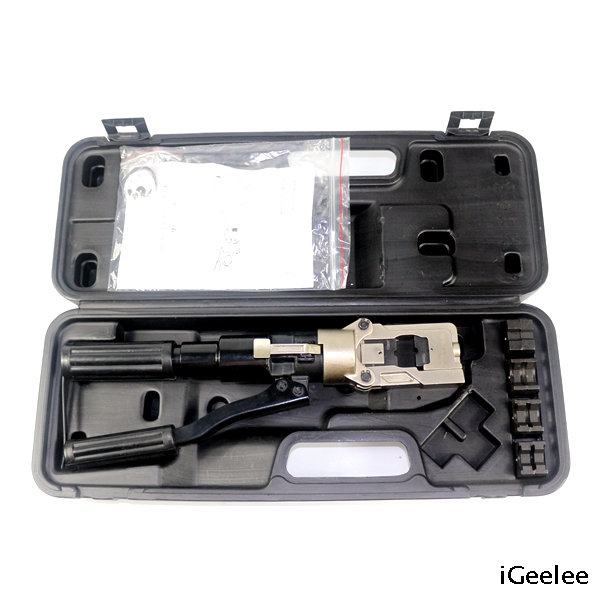

       Package        plastic case
       Accessories        10,16,25,35,50,70,95,120,150mm2


 Hydraulic Cable Pressing Tool

 The THS-150 was designed to accept dies for BEKU type mechanical tool widely used in European countries.
 The light weight and slim design is ideal for close quarter application such as connection in the switch box
 Easy latch type closed head provides easy insertion and removal of connectors. The spring loaded pump handle allows one hand pumping until lower die holds connector between dies
 The built-in safety valve will by-pass the oil supply when the maximum pressure is reached and the pressure release system can easily be operated at any stage of compression.
