BZ-400 C Type Battery Hydraulic Press Tool with Crimping Force of 120KN, Range of 16-400mm2
You are here: Home » Products » Wire Installation Tools » Battery Cable Tools » BZ-400 C Type Battery Hydraulic Press Tool with Crimping Force of 120KN, Range of 16-400mm2

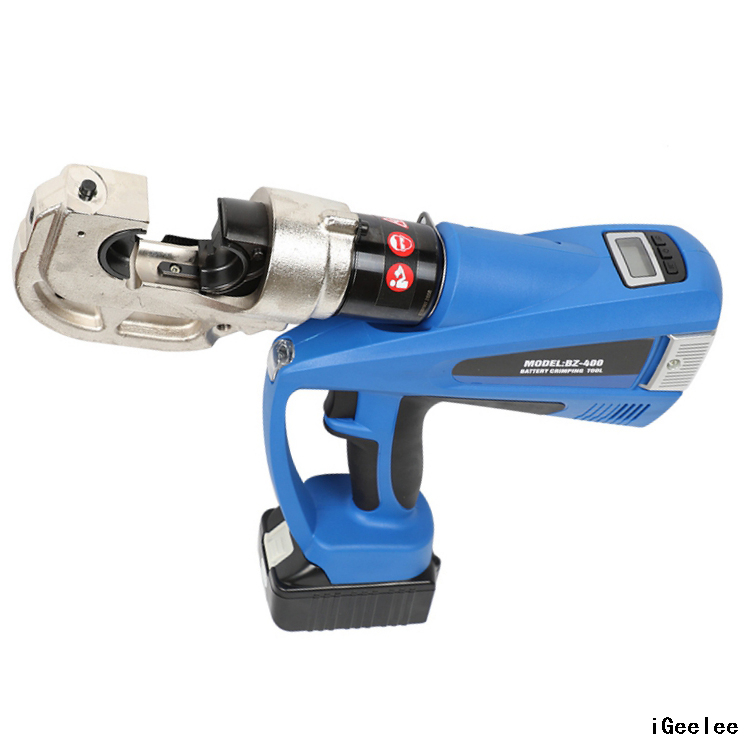

BZ-400 C Type Battery Hydraulic Press Tool with Crimping Force of 120KN, Range of 16-400mm2

Share to:

The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.

  • BZ-400
  • iGeelee
Quantity:

C Type Battery Hydraulic Press Tool BZ-400 with Battery Power,range of 16-400mm2

Crimping Force

120KN

Stroke     42mm
Crimps per charge  120 times  (Cu 150mm2 )
Crimping cycle   6-18s (depends on the size of cable)
Battery voltage     18V
Battery capacity    3.0 Ah
Charging time    2hours
Package     Plastic case
Accessories
Crimping Dies.    16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
Battery     2pcs
Charger    1pcs
Sealing ring of cylinder     1set
Sealing ring safety valve    1set


C Type Battery Hydraulic Press Tool with Battery Power,range of 16-400mm2


Micro computer control system-automatically detect the pressure when it is crimping, with double safety protect.


The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.


If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.


One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.


A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
