EZ-1550
iGeelee
| Availability: | |
|---|---|
| Quantity: | |
| Rated crimping force | 32KN |
| Rated working pressure | 52Mpa |
| Crimp/charge | 350 times(DN 20 Stainless steel pipe) |
| Piston stroke | 40mm |
| Clamping cycle | 3-8s |
| Working temperature | -10℃~40℃ |
| Battery | 18V 3.0Ah Li-ion |
| Charger | AC100~240V,50~60Hz |
| Charging time | 2Hours |
| ACCESSORIES | |
| Battery | 2pcs |
| Charger | 1pc |
| Sealing ring of cylinder | 1set |
| Sealing ring of safety valve | 1set |
Clamp die specification for thin-wall stainless steel pipe,copper pipe (nominal outer diameter) | SV type:15,18,22,28mm |
| Clamp die specification for XPAP | TH type:16,20,26,32mm U type:16,20,25,32mm |
| Clamp die specification for PEX | 15(3/8"),18(1/2"),20(5/8"),24(3/4"),30(1") |
| NOTE:ln order to meet demand please provide appropriate size and a standard of tube when place order. | |

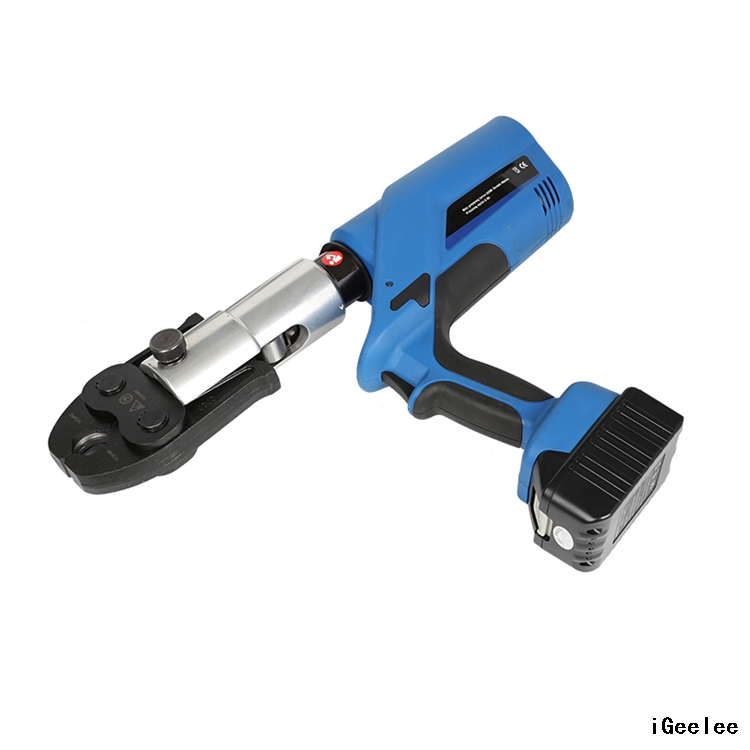

Battery Pex Crimping Tools EZ-1550 for 50Mpa Rated working pressure, can work on -10℃~40℃ Working temperature, 32KN rated crimping force,Piston stroke: 40mm
Characteristics And Advantages:
Full automatic clamping process,return the piston into its starting position when the max pressure reached.
Suspend and release device ensure accurate reliability and good sealing.
The hydraulic safety valve and electronic pressure sensor double overload protection device,can be in any
need to terminate the work,avoid hazardous.
Straight insert rotary lock type clamp head pin,prevent clamp head pin not lock to work.
180 rotary clamp head,perfect used in narrow working space.
Large capacity of li-ion battery and strong motor provide powerful performance and durability.
LED and sound alarm function,let your work more secure when malfunction happened.
Built-in temperature sensor,prevent the damage from the long work.
| Rated crimping force | 32KN |
| Rated working pressure | 52Mpa |
| Crimp/charge | 350 times(DN 20 Stainless steel pipe) |
| Piston stroke | 40mm |
| Clamping cycle | 3-8s |
| Working temperature | -10℃~40℃ |
| Battery | 18V 3.0Ah Li-ion |
| Charger | AC100~240V,50~60Hz |
| Charging time | 2Hours |
| ACCESSORIES | |
| Battery | 2pcs |
| Charger | 1pc |
| Sealing ring of cylinder | 1set |
| Sealing ring of safety valve | 1set |
Clamp die specification for thin-wall stainless steel pipe,copper pipe (nominal outer diameter) | SV type:15,18,22,28mm |
| Clamp die specification for XPAP | TH type:16,20,26,32mm U type:16,20,25,32mm |
| Clamp die specification for PEX | 15(3/8"),18(1/2"),20(5/8"),24(3/4"),30(1") |
| NOTE:ln order to meet demand please provide appropriate size and a standard of tube when place order. | |
Battery Pex Crimping Tools EZ-1550 for 50Mpa Rated working pressure, can work on -10℃~40℃ Working temperature, 32KN rated crimping force,Piston stroke: 40mm
Characteristics And Advantages:
Full automatic clamping process,return the piston into its starting position when the max pressure reached.
Suspend and release device ensure accurate reliability and good sealing.
The hydraulic safety valve and electronic pressure sensor double overload protection device,can be in any
need to terminate the work,avoid hazardous.
Straight insert rotary lock type clamp head pin,prevent clamp head pin not lock to work.
180 rotary clamp head,perfect used in narrow working space.
Large capacity of li-ion battery and strong motor provide powerful performance and durability.
LED and sound alarm function,let your work more secure when malfunction happened.
Built-in temperature sensor,prevent the damage from the long work.
Battery Pex Crimping Tools EZ-1550 for 50Mpa Rated working pressure, can work on -10℃~40℃ Working temperature, 32KN rated crimping force,Piston stroke: 40mm
Characteristics And Advantages:
Full automatic clamping process,return the piston into its starting position when the max pressure reached.
Suspend and release device ensure accurate reliability and good sealing.
The hydraulic safety valve and electronic pressure sensor double overload protection device,can be in any
need to terminate the work,avoid hazardous.
Straight insert rotary lock type clamp head pin,prevent clamp head pin not lock to work.
180 rotary clamp head,perfect used in narrow working space.
Large capacity of li-ion battery and strong motor provide powerful performance and durability.
LED and sound alarm function,let your work more secure when malfunction happened.
Built-in temperature sensor,prevent the damage from the long work.
Battery Pex Crimping Tools EZ-1550 for 50Mpa Rated working pressure, can work on -10℃~40℃ Working temperature, 32KN rated crimping force,Piston stroke: 40mm
Characteristics And Advantages:
Full automatic clamping process,return the piston into its starting position when the max pressure reached.
Suspend and release device ensure accurate reliability and good sealing.
The hydraulic safety valve and electronic pressure sensor double overload protection device,can be in any
need to terminate the work,avoid hazardous.
Straight insert rotary lock type clamp head pin,prevent clamp head pin not lock to work.
180 rotary clamp head,perfect used in narrow working space.
Large capacity of li-ion battery and strong motor provide powerful performance and durability.
LED and sound alarm function,let your work more secure when malfunction happened.
Built-in temperature sensor,prevent the damage from the long work.
