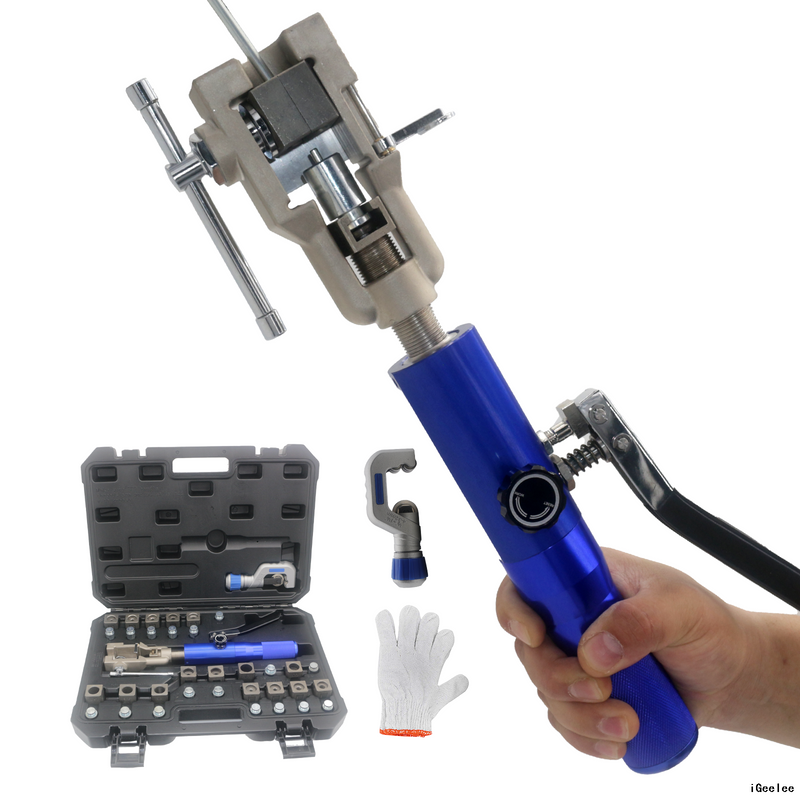

Product Description

• Tube and die set stabilizing arm for easy tube forming

• Magnetic adapter holder keeps adapters in place

• Equipped with an enlarged die set compression area for better grip of dies

• Create perfect production quality flares on annealed stainless steel tubing, terne plate steel tubing, soft aluminum and soft cooper tubing

This kit fabricates: Push Connect 1/4, 5/16 and 3/8”, GM Fuel Line Flare, Brake Lines and Transmission 5/16 and 3/8”, Flare/Double Flare 3/16, 1/4, 5/16, 3/8 and 1/2”, Metric Bubble Flare 4.75, 6, 8, and 10 mm, GM Transmission Cooling Line 3/8 and 1/2”. Comes in a custom molded box. PATENT# 5,782,128

Set includes:
71202: Hydra-Flare Yoke & Pump Assembly
71097-01: 45° Flaring Cone

Push Connect Adapters
71204: 1/4″ Adapter
71205: 5/16″ Adapter
71206: 3/8″ Adapter

Push Connect Die Sets
71214: 1/4″ Die Set
71215: 5/16″ Die Set
71216: 3/8″ Die Set

GM Fuel Line Adapters
71405: 5/16″ Adapter
71406: 3/8″ Adapter

GM Fuel Line Die Sets
71415: 5/16″ Die Set
71416: 3/8″ Die Set

45˚ & Double Flaring Adapters
71097-03: 3/16″ Adapter
71097-04: 1/4″ Adapter
71097-05: 5/16″ Adapter
71097-06: 3/8″ Adapter
71097-08: 1/2″ Adapter

45˚ & Double Flaring Die Sets
71097-13: 3/16″ Die Set
71097-14: 1/4″ Die Set
71097-15: 5/16″ Die Set
71097-16: 3/8″ Die Set
71097-18: 1/2″ Die Set

Metric Bubble Flaring Adapters
71475-4M: 4.75 mm Adapter
71475-6M: 6 mm Adapter
71475-8M: 8 mm Adapter
71475-10M: 10 mm Adapter

Metric Bubble Flaring Die Sets
71475-14M: 4.75 mm Die Set
71475-16M: 6 mm Die Set
71475-18M: 8 mm Die Set
71475-110M: 10 mm Die Set

GM Transmission Cooling Line Adapters
71099-06: 3/8” Adapter
71099-08: 1/2” Adapter

GM Transmission Cooling Line Die Sets
71099-16: 3/8” Die Set
71099-18: 1/2” Die Set
