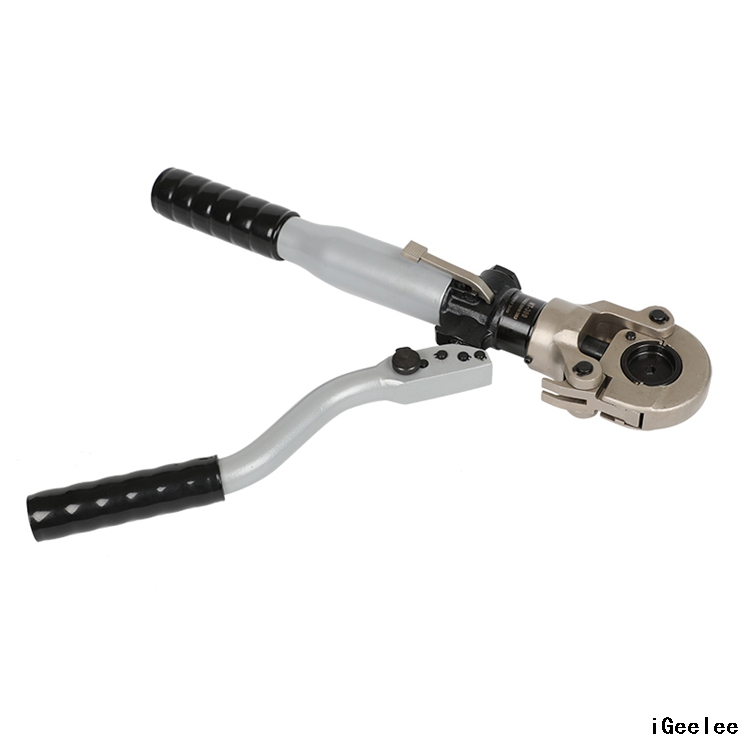

Hydraulic Cable Compression Plier HT-300 Range 16-300mm with Flip Top Style, Safety Valve inside
You are here: Home » Products » Wire Installation Tools » Cable Crimping Tools » Hydraulic Cable Compression Plier HT-300 Range 16-300mm with Flip Top Style, Safety Valve inside

Hydraulic Cable Compression Plier HT-300 Range 16-300mm with Flip Top Style, Safety Valve inside

Share to:

This hydraulic crimper tools features a double speed action: a fast advancing speed for rapid approach of the blades to the
connector and a slower more powerful speed for crimping.

  • HT-300
  • iGeelee
Quantity:

Hydraulic Cable Compression Plier HT-300 Range 16-300mm with Flip Top Style, Safety Valve inside

Crimping Range     16-300 mm2
Crimping Force    60KN
Crimping Type     hexagon crimping
Stroke     17 mm
Length    460 mm
Weight     approx. 3.5 kg
Package     Steel case

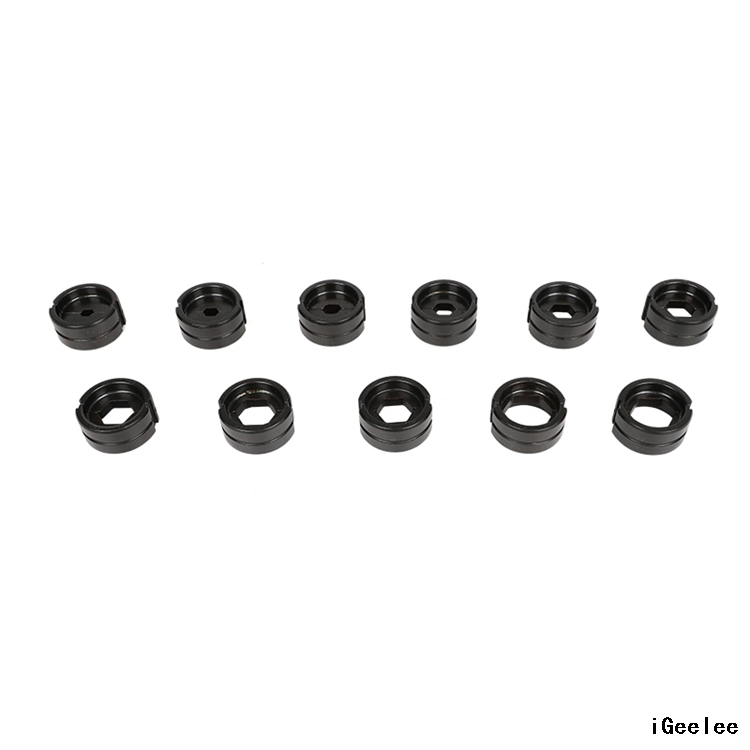

Standard Accessories     16,25,35,50,70,95,120,150,185,240,300 mm2



HT-300 Crimping Tool,hydraulic hexagon crimping with dies of 16,25,35,50,70,95,120,150,185,240,300mm2 for cable,stroke of 17mm,crimping force of 60KN, designed with 4 features.

1) Crimping head, rotate 180 degrees, flip top style.
2) Manual retract in case of need.
3) High tensive aluminum alloy handiness.
4) Prevent- slip handle.

 1 This hydraulic crimper tools features a double speed action: a fast advancing speed for rapid approach of the blades to the
 connector and a slower more powerful speed for crimping.
 2 For ease of operation and comfort the operator the hydrauic crimping tool head can be fully rotated through 180 º.
 3 The built-in safely valve will by-pass the oil supply when the maximum pressure is reached, and the pressure release system
 can easily be operated at any stage of compression.
 4 The hydraulic crimping tools with interchangeable dies.
