Hydraulic Cable Pressing Tool HT-400 with C Type Crimper Head, Crimping Range Up To 400mm2
You are here: Home » Products » Wire Installation Tools » Cable Crimping Tools » Hydraulic Cable Pressing Tool HT-400 with C Type Crimper Head, Crimping Range Up To 400mm2

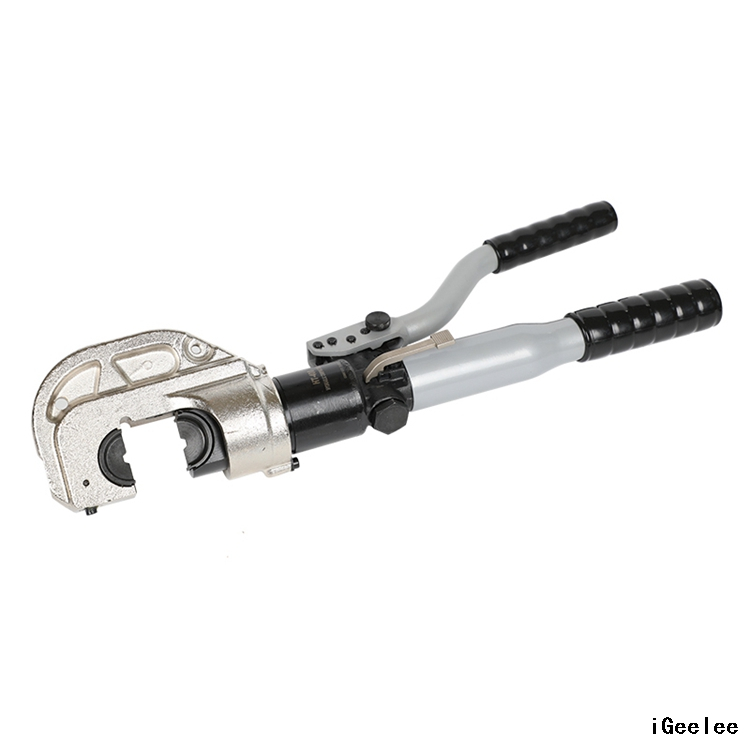

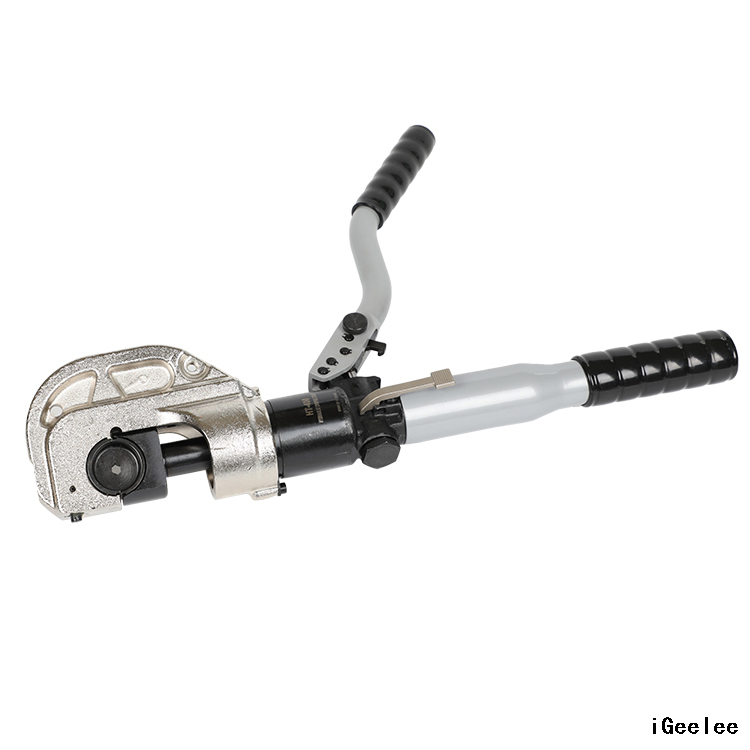

Hydraulic Cable Pressing Tool HT-400 with C Type Crimper Head, Crimping Range Up To 400mm2

Share to:

1) Crimping head, rotate 180 degrees, C top style.
2) Manual retract in case of need.
3) High tensive aluminum alloy handiness.
4) Prevent- slip handle.

  • HT-400
  • iGeelee
Quantity:

Hydraulic Cable Pressing Tool HT-400 with C Type Crimper Head, Crimping Range Up To 400mm2

Crimping Range      16-400mm2
Crimping Force     130KN
Crimping Type     hexagon crimping
Stroke      42mm
Length     560mm
Weight     approx.7.5kg
Package     Aluminum alloy code case

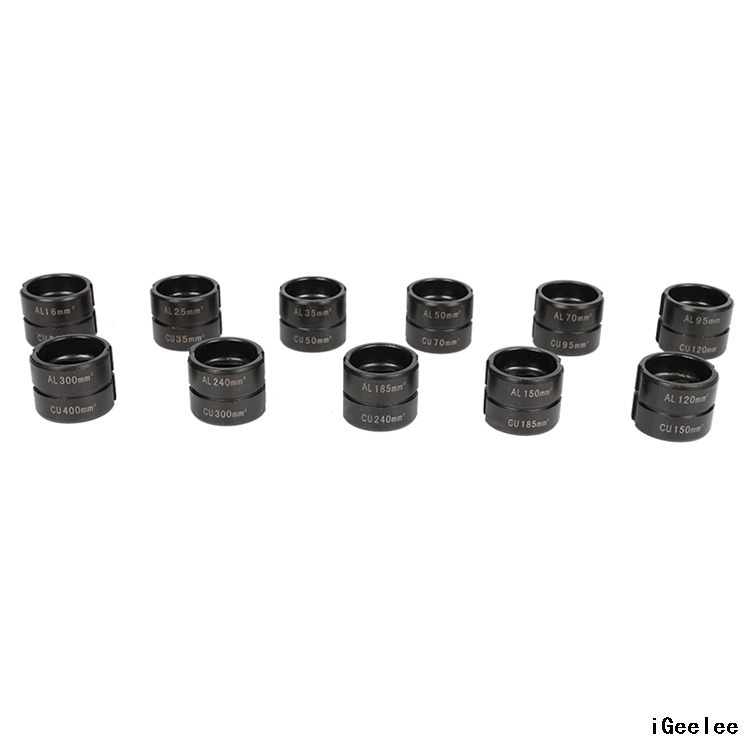

Standard Accessories    16, 25, 35, 50, 70, 95,120,150,185,240,300,400mm2

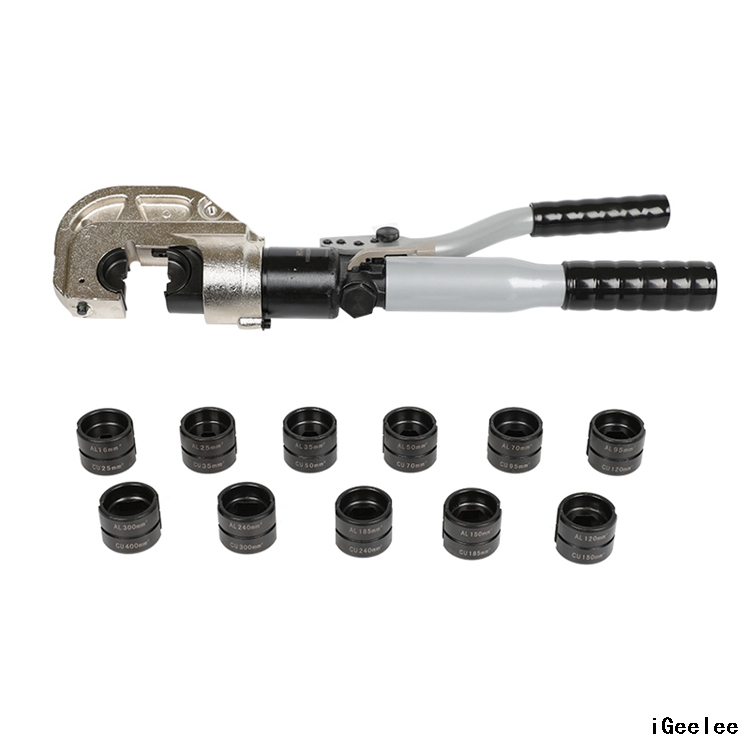

HT-13042 Hydraulic Cable Pressing Tool,for cable connectors use,with die sets of 16,25,35,50,70,95,120,150,185,240,300,400mm2,and features with C type head,designed with 4 features.
1) Crimping head, rotate 180 degrees, C top style.
2) Manual retract in case of need.
3) High tensive aluminum alloy handiness.
4) Prevent- slip handle.

 Hydraulic Crimping Tool Features

 1 The hydraulic crimping tool features a double speed action:   a fast advancing speed for rapid approach of

 the blades to the connector and a slower more powerful speed for cutting.

 2 For ease of operation and comfort the operator the tool head can be fully rotated through 180 º.

 3 The built-in safely valve will by-pass the oil supply when the maximum pressure is reached, and the pressure of hydraulic crimping tool release system can easily be operated at any stage of compression.

 4 This type of  hydraulic crimping tool with interchangeable dies.
