Hydraulic Crimping Tool ZCO-300 for AL/Cu Conductor Range 16-300mm2 with Safety Valve inside
You are here: Home » Products » Wire Installation Tools » Cable Crimping Tools » Hydraulic Crimping Tool ZCO-300 for AL/Cu Conductor Range 16-300mm2 with Safety Valve inside

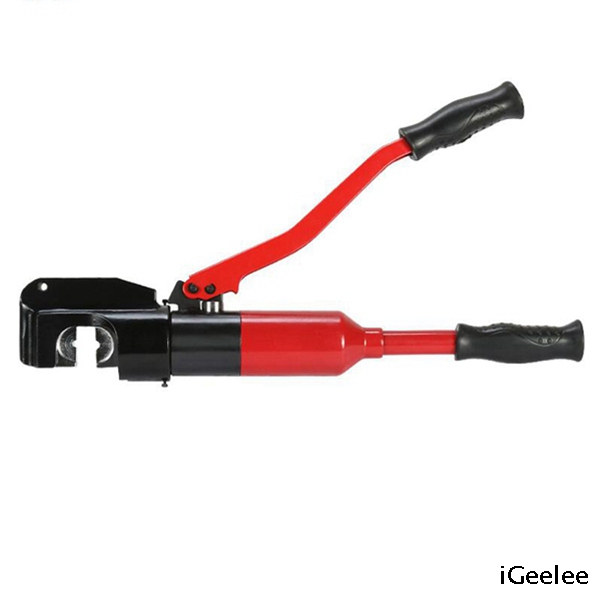

Hydraulic Crimping Tool ZCO-300 for AL/Cu Conductor Range 16-300mm2 with Safety Valve inside

Share to:

General Features

1 For interchangeable dies.

2 Crimping head, C-type, rotates 180 degree.

3 Two stages hydraulics.

4 With safety valve inside.

5 Manual retract in case of need

  • ZCO-300
  • iGeelee
Quantity:

Hydraulic Crimping Tool ZCO-300 for AL/Cu Conductor Range 16-300mm2 with Safety Valve inside

Crimping Range     16-300mm2
Crimping Force     10T
Crimping Type    hexagon crimping
Stroke     16mm
Length   540mm
Weight    approx.5.0kg
Package    plastic case
Standard Accessories     16,25,35,50,70,95,120,150,185,240,300mm2



Hydraulic compression tool design to C-type crimping head,rotate 180 degrees,16-300mm2, Crimping dies: 16,25,35,50,70,95,120,150,185,240,300mm2

 General Features

 1 For interchangeable dies.

 2 Crimping head, C-type, rotates 180 degree.

 3 Two stages hydraulics.

 4 With safety valve inside.

 5 Manual retract in case of need.
