Mini Battery Cable Cutter PZ-20C/32C/32CX for Maximum Cutting kinds of cables
You are here: Home » Products » Wire Installation Tools » Battery Cable Tools » Mini Battery Cable Cutter PZ-20C/32C/32CX for Maximum Cutting kinds of cables

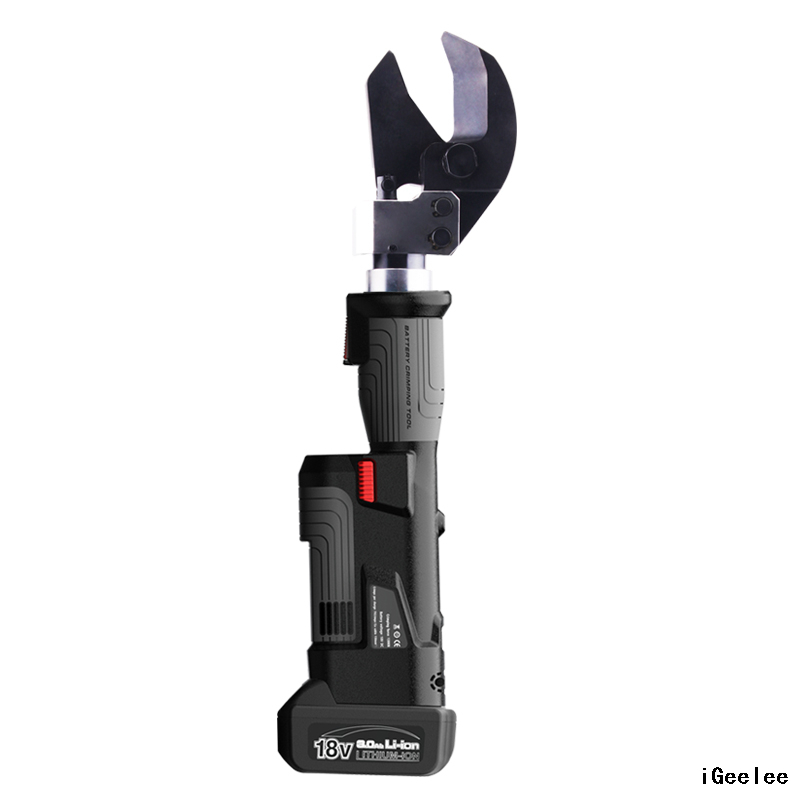

Mini Battery Cable Cutter PZ-20C/32C/32CX for Maximum Cutting kinds of cables

Share to:

The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.

  • PZ-20C/32C/32CX
  • iGeelee
Quantity:

PZ Series Mini Battery Cutter for maximum cutting range of 21mm

Item NumberPZ-20PZ-32CPZ-32CX
Rated Pressure
20KN20KN20KN
Stroke29mm29mm29mm
Cutting RangeASCR Φ20mmxx
Single core Cu Cable Φ20mmΦ23mmΦ23mm
Four core Cu Cable xΦ23mmΦ23mm
Single core Al Cable Φ20mmΦ25mmΦ25mm
Single core Armored Cu cable ≤Φ20mmΦ32mmΦ32mm
Voltage of battery       18V DC Li-ion
Capacity       3Ah
Voltage       100-240V AC
Charger       1pcs
Sealing ring of cylinder       1set
Sealing ring of safety valve       1set



PZ Series with the samll size and a low weight can generate high power and performance , it is the newest addtion to the mini press tool with in-line grip, 2-4 seconds crimp cycle time.


Features


CIRCUIT BOARD DIAGNOSTICKS

Alart you when the battery is low or the tool is too hot or cold.


OlED DISPLAY

*Easy reading on.

*Battery Percentage.

*Pressing Times.

*Fault Code

*Maintenance Note


180 DEGREE SWIVELLING BARREL

Easy access to connections.


TWO STAGES  HYDRAULIC SYSTEM

Hydraulic Ram Output provides more force for reliable connection.


ERGONOMIC DESIGN

With light weight and in-line grip easy work overhead and in tight spaces.
