IG-71500
iGeelee
Availability: | |
---|---|
Quantity: | |
Description:

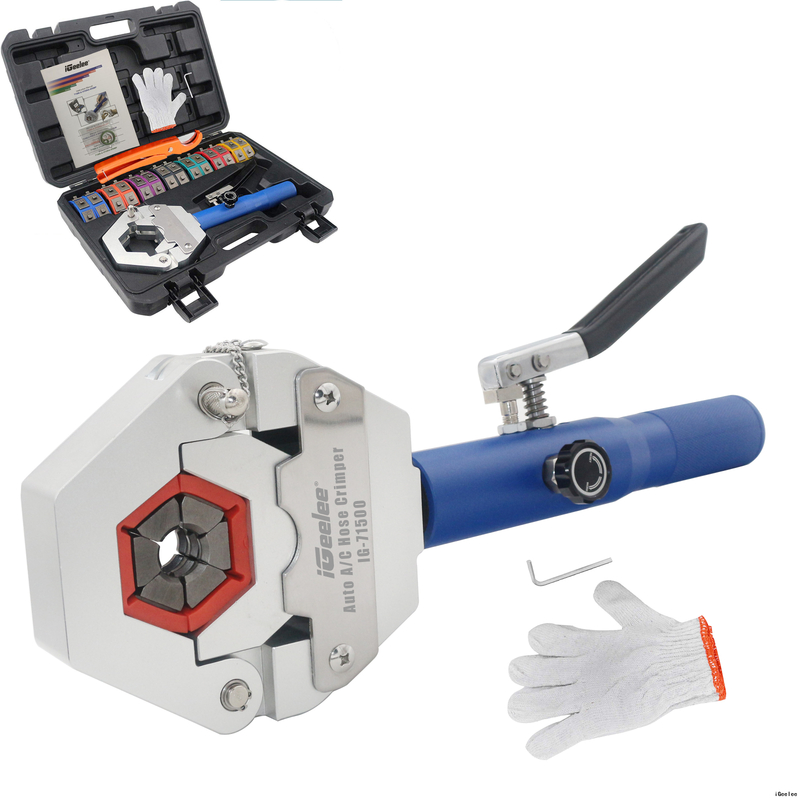

The light weight hand-held hydraulic press is very portable and ideal for shop and field applications.
The Hydra- Krimp can be used on both beaded and barbed hose fittings. The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced barrier #6, #8, #10 and #12.
The dies snap quickly into the press fixture requiring no pins or screws. Kit comes in custom molded case.
Hydra-Krimp Hose Crimper dies snap quickly into the press fixture, requiring no pins or screws. Kit comes in custom molded case.
Brand New In Original Box, 2 Year Manufacturer Warranty, You can contact us if you have any questions or need more information about this item.
Very easy for using :
1.Remove pin and loose the handle till you can "Open" top yoke
2.Select correct die set (refer to back page for description )
3.Insert the die into joke
4.Position fitting and hose in the crimper and close the yoke.
5.insert pin securely
6.Turn Body of tool clock wise until dies are snug against hose fittings.
7.Turn hydraulic valve to "closed "position
8. Pump handle to crimp fitting onto hose .continue pumping until handle comes to a stop
9. Once crimp is complete,turn hydraulic valve to OPEN position
Details:
Using the 71500 Crimp Machine, Crimping barbed and beaded fittings as easy as 1 - 2 - 3 ! The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications.
Pre-operation set-up
Open the relief valve to fully recess the piston
Rotate the yoke fully counter clockwise to bottom out the adapter seat
READY TO GO!
WARNING: Do NOT actuate the piston without having a hose and fitting in plave to crimp. This could cause damage to the tool. BE CAREFUL not to place hands near any pinch point while using the tool !
Feature
The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications
The Hydra- Krimp can be used on both beaded and barbed hose fittings
The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced Barrier #6, #8, #10 and #12
The dies snap quickly into the press fixture requiring no pins or screws. Kit comes in custom molded
Specifications
Condition: NEW
Brand: iGeelee
Model: 71500
Type: Hose Crimper Tool
Quantity: 1 piece
Weight: 17.6LBS 8KG
Material: Aluminum Alloy
Product Size: 18*15* 9 in /46*38*23 cm
Package Size: 46.5*37.5* 23 cm
Warranty: 2 Years
Package Content
71500 - 001A Hydra - Krimp Pump
71500-001B Hydra-Krimp Yoke
71500-001C
71500 - 6 Die Set - #6 (5/16”)
Die Set - #8 (13/32”) (Reduced Barrier)
71500 - 8 Die Set - #8 (13/32”)
71500 - 10 Die Set - #10 (1/2”)
71500 - 12 Die Set - #12 (5/8”)
71500 - 6SRB Die Set - #6 (5/16”) (Reduced Barrier)
71500 - 10SRB Die Set - #10 (1/2”) (Reduced Barrier)
71500 - 12SRB Die Set - #12 (5/8”) (Reduced Barrier)
71500- PB Custom Molded Box
Description:
The light weight hand-held hydraulic press is very portable and ideal for shop and field applications.
The Hydra- Krimp can be used on both beaded and barbed hose fittings. The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced barrier #6, #8, #10 and #12.
The dies snap quickly into the press fixture requiring no pins or screws. Kit comes in custom molded case.
Hydra-Krimp Hose Crimper dies snap quickly into the press fixture, requiring no pins or screws. Kit comes in custom molded case.
Brand New In Original Box, 2 Year Manufacturer Warranty, You can contact us if you have any questions or need more information about this item.
Very easy for using :
1.Remove pin and loose the handle till you can "Open" top yoke
2.Select correct die set (refer to back page for description )
3.Insert the die into joke
4.Position fitting and hose in the crimper and close the yoke.
5.insert pin securely
6.Turn Body of tool clock wise until dies are snug against hose fittings.
7.Turn hydraulic valve to "closed "position
8. Pump handle to crimp fitting onto hose .continue pumping until handle comes to a stop
9. Once crimp is complete,turn hydraulic valve to OPEN position
Details:
Using the 71500 Crimp Machine, Crimping barbed and beaded fittings as easy as 1 - 2 - 3 ! The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications.
Pre-operation set-up
Open the relief valve to fully recess the piston
Rotate the yoke fully counter clockwise to bottom out the adapter seat
READY TO GO!
WARNING: Do NOT actuate the piston without having a hose and fitting in plave to crimp. This could cause damage to the tool. BE CAREFUL not to place hands near any pinch point while using the tool !
Feature
The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications
The Hydra- Krimp can be used on both beaded and barbed hose fittings
The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced Barrier #6, #8, #10 and #12
The dies snap quickly into the press fixture requiring no pins or screws. Kit comes in custom molded
Specifications
Condition: NEW
Brand: iGeelee
Model: 71500
Type: Hose Crimper Tool
Quantity: 1 piece
Weight: 17.6LBS 8KG
Material: Aluminum Alloy
Product Size: 18*15* 9 in /46*38*23 cm
Package Size: 46.5*37.5* 23 cm
Warranty: 2 Years
Package Content
71500 - 001A Hydra - Krimp Pump
71500-001B Hydra-Krimp Yoke
71500-001C
71500 - 6 Die Set - #6 (5/16”)
Die Set - #8 (13/32”) (Reduced Barrier)
71500 - 8 Die Set - #8 (13/32”)
71500 - 10 Die Set - #10 (1/2”)
71500 - 12 Die Set - #12 (5/8”)
71500 - 6SRB Die Set - #6 (5/16”) (Reduced Barrier)
71500 - 10SRB Die Set - #10 (1/2”) (Reduced Barrier)
71500 - 12SRB Die Set - #12 (5/8”) (Reduced Barrier)
71500- PB Custom Molded Box
