iGeelee Hydraulic Hole Punch Tool TP-8C Is Designed As Working Head with Pumping Body Together

The TP-8C is designed as working head with pumping body together, it is easy to operate and carry with light weight.

Hydraulic Hole Punch Tool TP-8C Is Designed As Working Head with Pumping Body Together

Punching Force	66KN
Punching Range	Φ22.5-61.5mm in the 3.5mild steel
Stroke	22mm
Length	Approx. 320mm
Weight	Approx.2.70kg
Package	plastic box

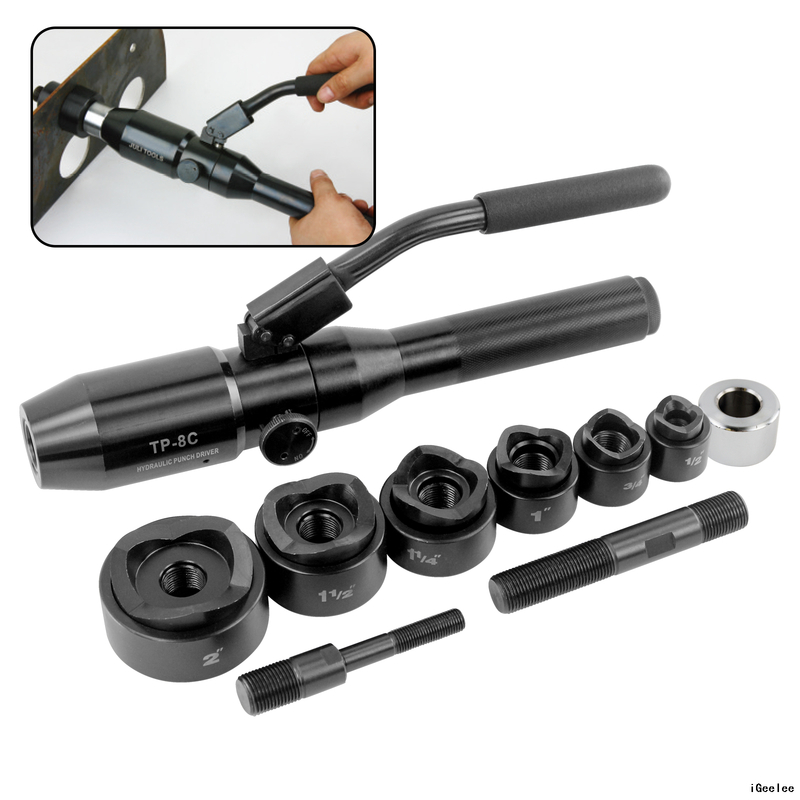

Accessories	round knock out Punches Type D: Φ22.5,Φ28.3，Φ34.6，Φ43.2, Φ49.6,Φ61.5mm 7/16"x 3/4" Draw Stud: 1 pc 3/4"X 3/4 Draw Stud: 1 pc Spacer: 1 set Sealing kit: 1 set Plastic box: 1 pc

Hydraulic hole digger with punching range of 22.5-61.5mm,

Hydraulic Hole Digger Features

1 The TP-8C is designed as working head with pumping body together, it is easy to operate and carry with light weight.

2 It is made by high optimized material.
