EM-6B1/EM-6B2 Crimping From 0.25mm2 To 10mm2 And Cu/AI Cutting in 7mm
You are here: Home » Products » Wire Installation Tools » Pneumatic Crimping Tools » EM-6B1/EM-6B2 Crimping From 0.25mm2 To 10mm2 And Cu/AI Cutting in 7mm
EM-6B1/EM-6B2 Crimping From 0.25mm2 To 10mm2 And Cu/AI Cutting in 7mm EM-6B1/EM-6B2 Crimping From 0.25mm2 To 10mm2 And Cu/AI Cutting in 7mm
EM-6B1/EM-6B2 Crimping From 0.25mm2 To 10mm2 And Cu/AI Cutting in 7mm EM-6B1/EM-6B2 Crimping From 0.25mm2 To 10mm2 And Cu/AI Cutting in 7mm

loading

EM-6B1/EM-6B2 Crimping From 0.25mm2 To 10mm2 And Cu/AI Cutting in 7mm

Share to:
sharethis sharing button
iGeelee EM-6B1/EM-6B2 crimping from 0.25mm2 to 10mm2 and Cu/AI cutting in 7mm, The EM-6B2 Crimping Machines comes supplied a standard red, yellow, blue crimping die set

  • EM-6B1/EM-6B2

  • iGeelee

Availability:
Quantity:
Inquire Add to Basket

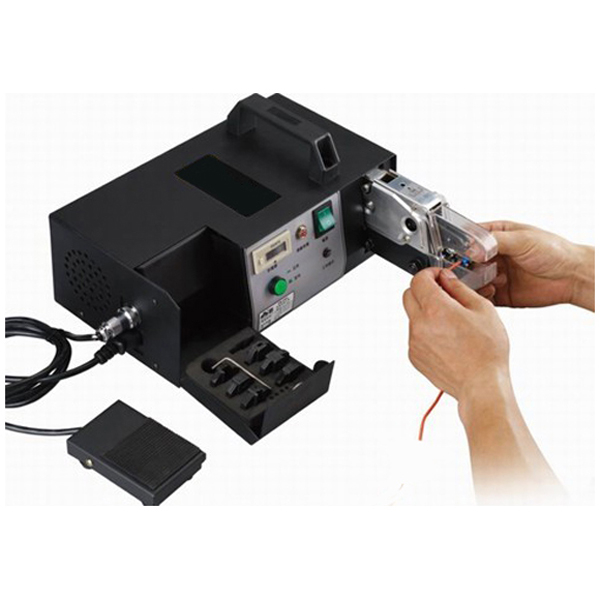

Electric Crimping Tool EM-6B1/EM-6B2

Model EM-6B1 (110V) EM-6B2 (220V)
Output 12.7KN 12.7KN
Max Crimping Force Insulated Terminal 5.5mm2 Insulated Terminal 5.5mm2
Crimping Time 1.5s(60Hz) 1.5s(60Hz)
1.8s(50Hz) 1.8s(50Hz)
Volts AC100-125V AC200-230V
Power Consumption 90W 90W
Dimension 325*265*150mm 325*265*150mm
Weight 12kg 12kg


The EM-6B2 Crimping Machines comes supplied a standard red, yellow, blue crimping die set and also with the following crimping die sets:
pneumatic crimping tool EM-6BSS

 Type EM-6B1/EM-6B2 is an ideal crimper for connection in cabinet. It is applicable for pre-insulated terminal crimping from 0.25mm2 to 10mm2 and Cu/AI cutting in 7mm. It is supplied with seven kinds of accurate and replaceable die sets. The crimper has high working efficiency and wide application.

 The crimper is driven by fixed speed motor so that it owns advantages of high efficiency and high quality not only in crimping force but crimping speed. It is good for terminal crimping in large or medium quantity. If there are a lot of different kinds of terminals to be crimped, this crimper is the best choice.



Previous:
Next:
electric crimping plier pneumatic crimping plier electric crimping machine electric crimping tool pneumatic crimping tool
