Electrical Rebar Bending Machine RB-25(32) for Rebar 6-32mm
You are here: Home » Products » Rebar Tools » Battery Rebar Tools » Electrical Rebar Bending Machine RB-25(32) for Rebar 6-32mm

Electrical Rebar Bending Machine RB-25(32) for Rebar 6-32mm

Share to:
sharethis sharing button
Motor Specifications: 220/230V, 50/60 hz, 14 A Electric
  • RB-25(32)

  • iGeelee

Model:
Availability:
Quantity:

Portable Electric Hydraulic Rebar Bender RB-25(32)

ModelRB-25RB-32
Voltage     220V/110V     220V/110V
Wattage     1600W/1700W     3000W/2800W
Gross weight     109Kg    203Kg
Net weight     91Kg     175Kg
Bending Angle     0°-180°     0°-180°
Max.rebar     25MM     32MM
Min.rebar     6MM     6MM

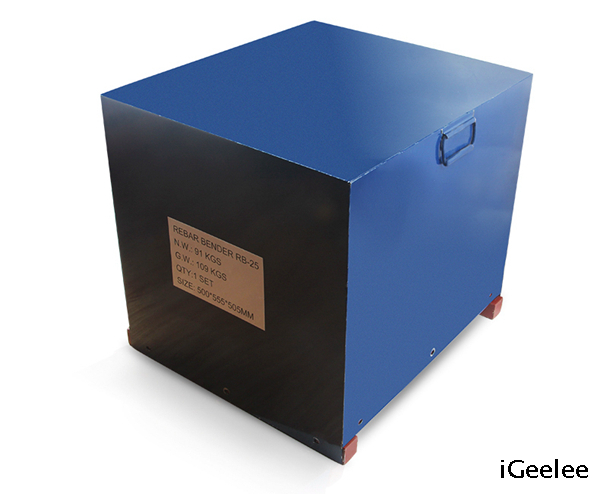

Package     One pc/ Cardboard  Ctn/Metal Box


One pc/ Cardboard  Ctn/Metal Box

Carton size     500x555x505MM     650x650x730MM
Machine size     450x500x440MM     600x580x470MM
Certificate     CE ROHS     CE ROHS

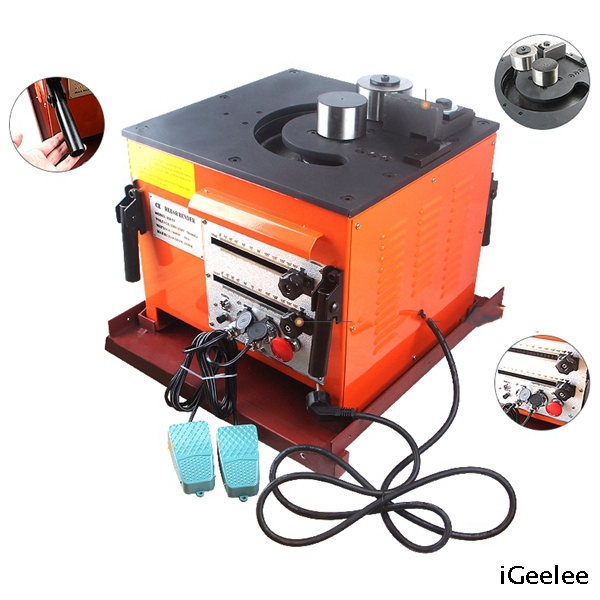

  RB-25  Electrical Rebar Bending Machine
 1)This RB-25(32) Electric Rebar Bending Machine includes rollers and collars of various size for use on different diameters of rebar.
 2)Ideal for builders, contractors and manufacturers who require a simple to use, consistently accurate rebar bending machine onsite or in the shop.
 3)Preset angle locks for repeating the same angle bend.The two slide-type angle selectors can be set to accurately bend any angle from 0-180degrees.two standard foot pedal control switch for hands-free bending
 4)Motor Specifications: 220/230V, 50/60 hz, 14 A Electric.
 5)Maximum Bending Thickness: 1″ (#8 rebar).
 6)Maximum Bending Angle: 180 degrees.
 7)Bending Speed: 5 seconds (to maximum 180 degree angle).
 8)Eliminates injuries and worker fatigue caused by manual rebar bending.
 9)Emergency stop and flush mounted star buttons are included for added safety.
 10)Motor runs quietly (low noise) and is only on while bending is in progress, preventing unnecessary wear.



Specification for Rebar  Benders
Model

Voltage/ Power

N. Weight

G. Weight

Max Rebar

Min Rebar

Bending Speed

Bending Angle

Certificate

RB-16     220V/800W    15KGS     16.5KGS   16MM     4MM    5 s     0-130°     CE ROHS
RB-25    230V/1600W   91KGS   109KGS     25MM   6MM   5.0~7.0 s    0-180°    CE RoHS
RB-32     220V/3000W    175KGS     203KGS     32MM     6MM     6.0~7.0 s    0-180°
CE RoHS
