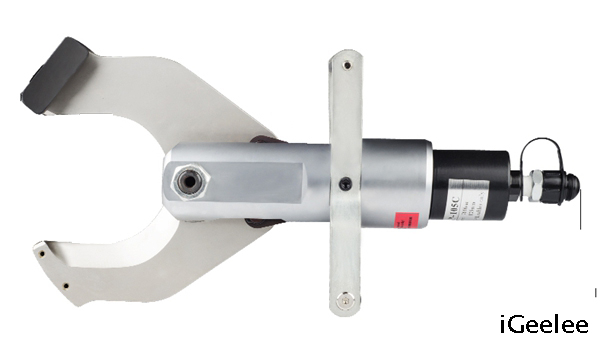

CPC-65C/105C/120C Hydraulic Wire Cable Cutting Head

Share to:
sharethis sharing button
Opening C type cutting head Hydraulic quick couper connect with the pump for working Guide pad design avoid the blade dislocation during cutting procession
  • CPC-65C/105C/120C

  • iGeelee

Availability:
Quantity:

CPC-65C/85C/105C/120C Hydraulic Wire Cable Cutting Head

Item No:

CPC-65C

CPC-105C

CPC-120C

Cutting range

≤Φ65mm

≤Φ105mm

≤Φ120mm

Rated output

60KN

120KN

120KN

Rated pressure

63Mpa

66Mpa

66Mpa

Oil capacity

46ml

95ml

95ml

Max.pressure

70Mpa



Cable

Cu/Al cable, armoured Cu/Al cable

Package

Canvas bags packed in heavyduty carton

1.Opening C type cutting head

2.Hydraulic quick couper connect with the pump for working

3.Guide pad design avoid the blade dislocation during cutting procession
