Hydraulic Pressing Tools HT-1550 with Pressing Force of 32KN, Double Hydraulic Stage
You are here: Home » Products » Pipe Installation Tools » Pex-Al-Pex Pipe Tools » Hydraulic Pressing Tools HT-1550 with Pressing Force of 32KN, Double Hydraulic Stage

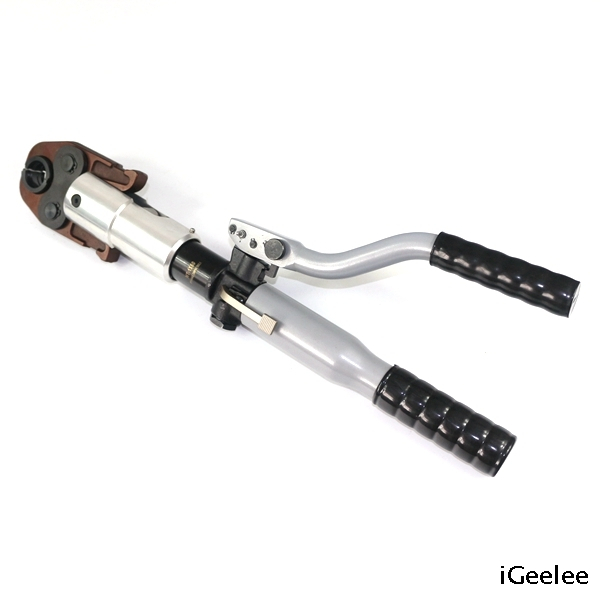

Hydraulic Pressing Tools HT-1550 with Pressing Force of 32KN, Double Hydraulic Stage

Share to:

Perfect design depend on the ergonomics, beautiful shape and operation comfortable

♦Suspend and release device ensure accurate reliability and good sealing safety valve design, ensure each clamp in good sealing.

♦Double hydraulic stage

♦350°rotary crimping head.

♦Straight-insert rotary lock type clamp head pin, prevent clamp head pin not lock to work.

  • HT-1550
  • iGeelee
Quantity:

Hydraulic Pressing Tools HT-1550 with Pressing Force of 32KN, Double Hydraulic Stage

Rated clamping force      32KN
Rated working pressure      52Mpa
Stroke      40mm
Oil capacity      40ml
Working temperature      -10℃-40℃

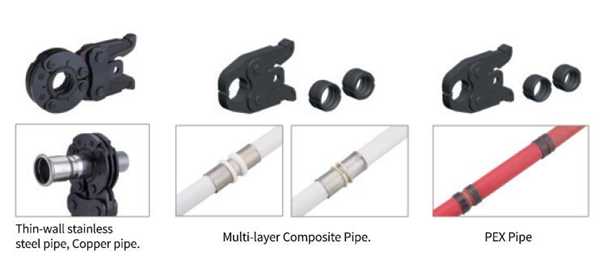

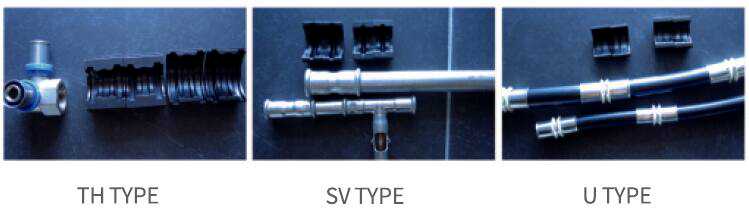

Pressing jaws      see the attached



 HT-1550 Manaul Pressing Tool for  pressing copper, staninless steel,Multi-layer composite pipe,Pex pipe.



 ♦Perfect design depend on the ergonomics, beautiful shape and operation comfortable

 ♦Suspend and release device ensure accurate reliability and good sealing safety valve design, ensure each clamp in good sealing.

 ♦Double hydraulic stage

 ♦350°rotary crimping head.

 ♦Straight-insert rotary lock type clamp head pin, prevent clamp head pin not lock to work.
