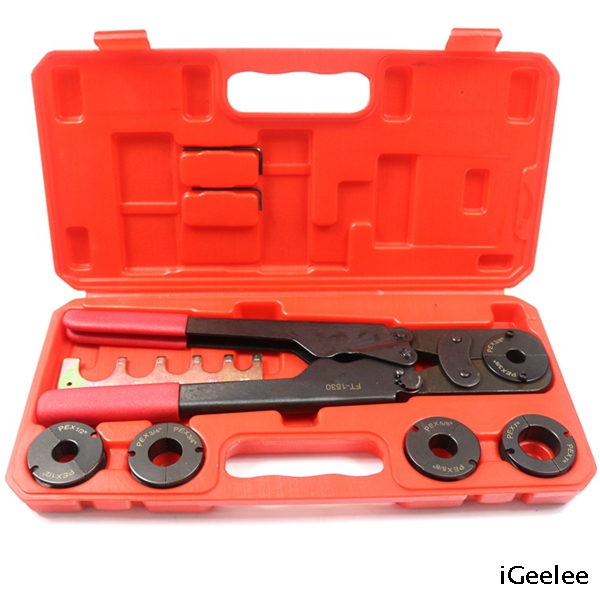

Pex Pipe Crimper Combo Kit FT-1530 for Tube Connections
5 Crimping Dies | Φ15mm (3/8”), Φ18mm (1/2”), Φ24mm (3/4”), Φ30mm (1”) |
Weight | approx. 1.6kgs（3.5 lbs) |
Length | approx. 330mm |
Package | Convenient Carrying Case |
Dimension | 16" x 5" x 2" |
Note | Go / No-Go Gauge Included |
FT-1530 ASTM F1807 PEX Crimp Toolkit is for use making tubing connections in potable water and radiant heating applications using ASTM F 1807 copper crimp rings. Works with 3/8", 1/2", 5/8", 3/4", and 1" PEX Rings and Supplies
Features
With ASTM F1807 Standards
Comfortable grips reduce fatigue
Lightweight and size gives the ability to access tight spaces
Go / No-Go Gauge Included
The comfortable grips help reduce fatigue and make crimping effortless.
This full kit gives you the ability to crimp from 3/8" up to 1" utilizing 5 different crimp dies.
The size and weight of this PEX combo tool give it the ability to access tight spaces without a problem. Comes in a convenient carrying case to hold PEX crimp tool and dies.
How to use?
The standard method for connecting PEX pipe tube to brass PEX fittings uses a copper crimp ring and a PEX crimping tool.
The copper crimp ring is inserted over the pipe, the fitting is inserted inside the pipe, and the copper ring is crimped over the pipe and fitting using the PEX crimping tool.
