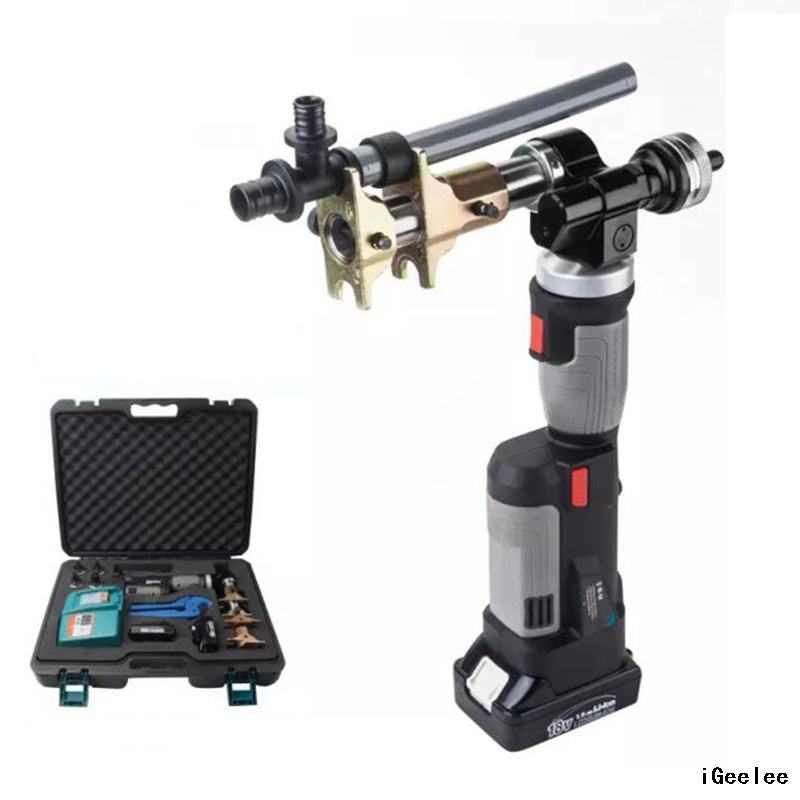

PZ-1240PE Hydraulic Battery Powered Axial Press Tool and Expand Tool for 16, 20, 25& 32mm
You are here: Home » Products » Pipe Installation Tools » Battery Pipe Tools » PZ-1240PE Hydraulic Battery Powered Axial Press Tool and Expand Tool for 16, 20, 25& 32mm

PZ-1240PE Hydraulic Battery Powered Axial Press Tool and Expand Tool for 16, 20, 25& 32mm

Share to:
sharethis sharing button
Micro computer control system with the feature of self-pressure inspecting, double protection during operation, counting and realize the exchange between computer with data by the converter.
  • PZ-1240PE

  • iGeelee

Availability:
Quantity:

PZ-1240PE Battery Axial Pipe Pressing & Expanding Tool for 16, 20 , 25, 32mm



Rated pressure

       18KN

Stroke

       40mm

Clamping range

       12-40mm

Connecting/ charge

       320 times

Clamping cycle

       3s-10s

Battery voltage

       18V

Battery capacity

       1.5 Ah

Voltage Available

       100-240V AC

Package

       Plastic case

Accessories

Dies

      16x2.2mm, 20x2.8mm,

      25x3.5mm, 32x 4.4mm.

Battery

      2pcs

Charger

      1pc

Sealing ring of cylinder

      1set

Sealing ring safety valve

      1set



Key Features:

Rotary Crimping Head: The 350° rotary head with a flip-top crimping head allows for versatile operation in various work environments.

Instant Pause Function: The tool offers an instant pause function that can be controlled at any time, including manual retraction, enhancing operational flexibility.

Ergonomic Design: Engineered with an ergonomic, anti-slip handle for comfortable and secure handling during extended use.

Microcomputer Control System: Features a microcomputer control system with self-pressure inspection, dual protection during operation, counting functions, and data exchange capabilities via a converter.

High-Performance Li-Ion Battery: Equipped with a high-performance Li-Ion battery that provides a strong power source, free from discharge memory effects. A single charge can support approximately 300 effective crimping cycles.

LED Lighting: Includes an LED light to facilitate work in low-light environments.

Dual Safety Monitoring: Incorporates a precision hydraulic valve control system and an electric sensor control system for double safety monitoring protection.


The PZ-1240 is compatible with various PEX systems, including:

  • Bushpex Pull-On

  • Ezi Pex Slide

  • Forza Pex Sleeve

  • Propex

  • PSC Pex Sleeve

  • Rehau Water & Gas

  • Tradepex Water & Gas Sleeve
