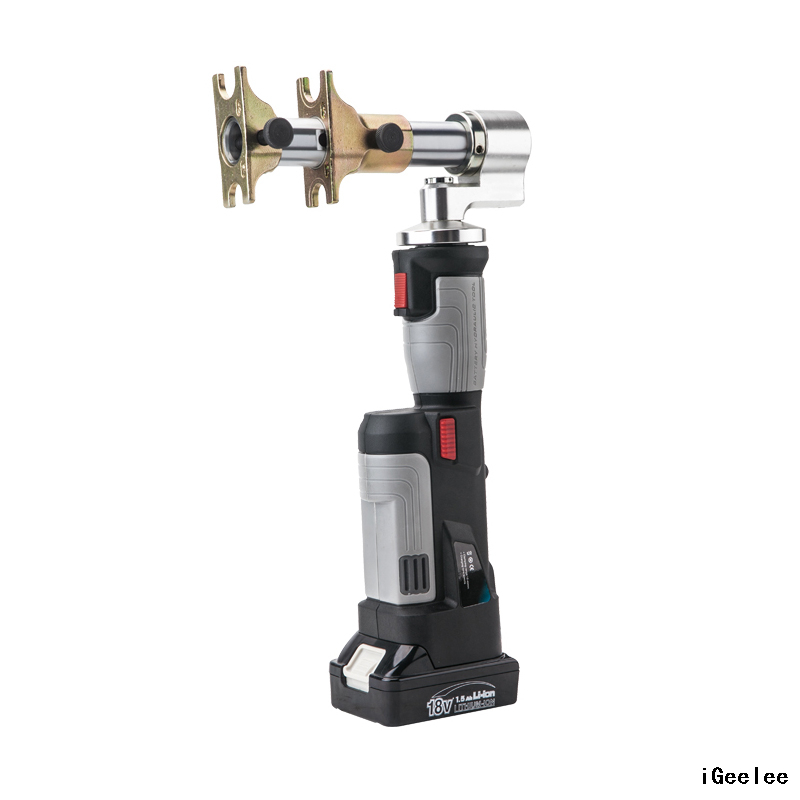

Axial Pressing Tool PZ-1240 for Pex System with Clamping Range 16mm,20mm,25mm,32mm
|Clamping Force ||20KN |
|Stroke ||40mm |
|Clamping range ||16-32mm |
|Connecting/ charge ||320 times |
|Working cycle ||3s-10s |
|Battery voltage ||18V |
|Battery capacity ||3.0 Ah |
|Charging time ||2hours |
|Package ||Plastic case |
|Dies ||16-20mm, 25-32mm |
|Battery ||2pcs |
|Charger ||1pc |
|Sealing ring of cylinder ||1set |
|Sealing ring safety valve ||1set |
Axial Pressing Tool PZ-1240 for rehau system with clamping range 16mm,20mm,25mm,32mm
Micro computer control system-automatically detect the pressure when it is crimping, with double safety protect.
Pressure released automatically Function-the tool stop forcing the pressing and release 90% pressure when the pressure reached maximum.
The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
