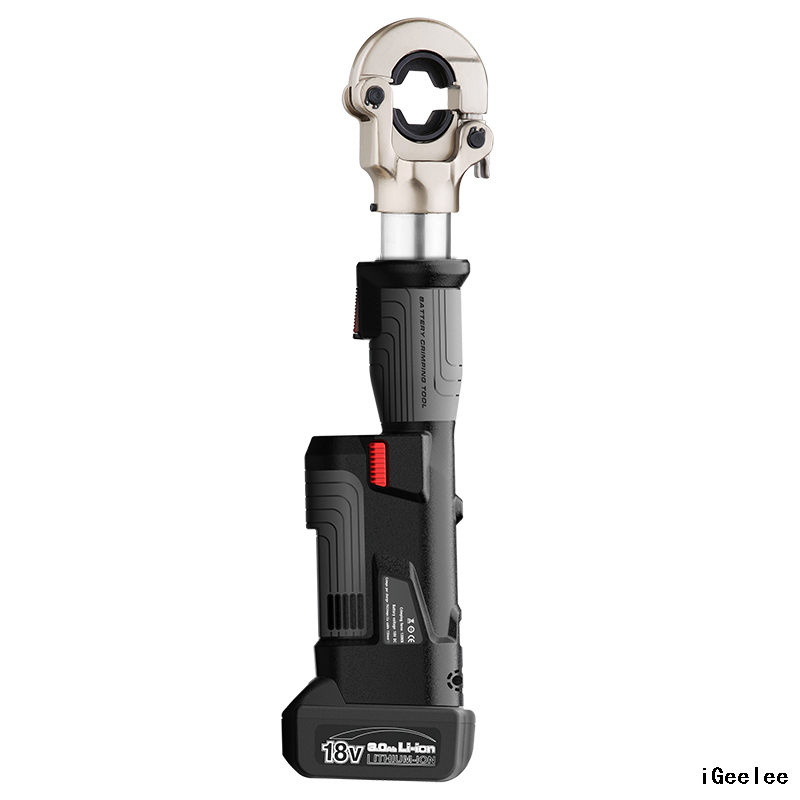

PZ-300 Mini Battery Operated Hydraulic Crimper or 16-300mm2 Cable Use,crimping Cable Lug
You are here: Home » Products » Wire Installation Tools » Battery Cable Tools » PZ-300 Mini Battery Operated Hydraulic Crimper or 16-300mm2 Cable Use,crimping Cable Lug
PZ-300 Mini Battery Operated Hydraulic Crimper or 16-300mm2 Cable Use,crimping Cable Lug PZ-300 Mini Battery Operated Hydraulic Crimper or 16-300mm2 Cable Use,crimping Cable Lug

loading

PZ-300 Mini Battery Operated Hydraulic Crimper or 16-300mm2 Cable Use,crimping Cable Lug

Share to:
sharethis sharing button
New version PZ-300 with the samll size and a low weight can generate high power and performance , it is the newest addtion to the mini press tool with in-line grip, 2-4 seconds crimp cycle time.
  • PZ-300

  • iGeelee

Availability:
Quantity:

PZ-300 Mini Battery-operated Hydrauilc Crimping Tool for 16-300mm2 cable use,crimping cable lug


Technical Parameters:
Max. output60KN
Stroke17mm
Crimping rangeCu 300mm2/ Al 240mm2
Size of tool428*134*75
Time/ Work2.5-4s (Depend on the dia of cable
Voltage of battery18v DC
Capacity1.5Ah
Voltage100-240v AC; 50-60HZ
PackagePlastic box
Accessories
Crimping dies: 16,25,35,50,70,95,120,150,185,240,300mm2
Battery2pcs
Charger1pcs
Sealing ring of cylinder1set
Sealing ring of safety valve1set

Battery Powered Hydrauic Crimping Tool PZ-300 for cable of 16,25,35,50,70,95,120,150,185,240,300mm2,with Li-ion Battery,360 rotary head working at any site



PZ Series with the samll size and a low weight can generate high power and performance , it is the newest addtion to the mini press tool with in-line grip, 2-4 seconds crimp cycle time.


Features


CIRCUIT BOARD DIAGNOSTICKS

Alart you when the battery is low or the tool is too hot or cold.


OlED DISPLAY

*Easy reading on.

*Battery Percentage.

*Pressing Times.

*Fault Code

*Maintenance Note


180 DEGREE SWIVELLING BARREL

Easy access to connections.


TWO STAGES  HYDRAULIC SYSTEM

Hydraulic Ram Output provides more force for reliable connection.


ERGONOMIC DESIGN

With light weight and in-line grip easy work overhead and in tight spaces.
