EZ-400U
iGeelee
Availability: | |
---|---|
Quantity: | |

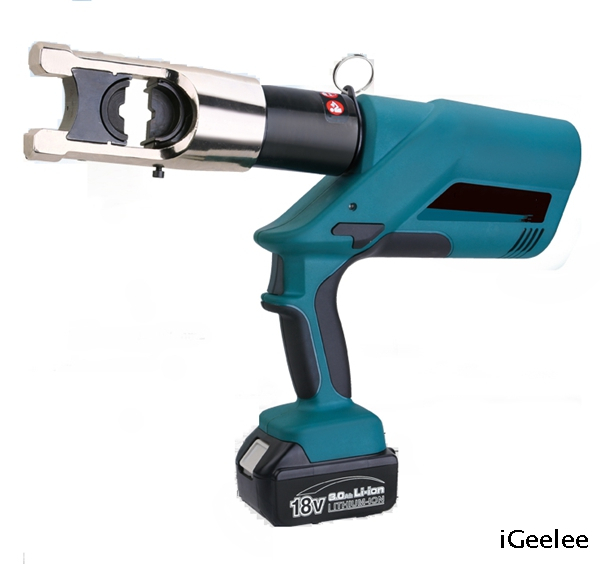

Battery Powered Wire Crimping Tool with Micro Computer Control System,for pressing Copper and Aluminum Terminals EZ-400U
crimping Force | 120KN |
Stroke | 20mm |
Crimps per charge | 150 times (Cu 150mm2 ) |
crimping cycle | 4-12s (depends on the size of cable) |
Battery voltage | 18V |
Battery capacity | 3.0 Ah |
Charging time | 2hours |
Package | Plastic case |
Accessories | |
crimping Dies. | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
Battery | 2pcs |
Charger | 1pcs |
Sealing ring of cylinder | 1set |
Sealing ring safety valve | 1set |
Battery Powered Wire Crimping Tools with Micro Computer Control System
Micro computer control system-automatically detect the pressure when it is crimping, with double safety protect.
The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
Battery Powered Wire Crimping Tool with Micro Computer Control System,for pressing Copper and Aluminum Terminals EZ-400U
crimping Force | 120KN |
Stroke | 20mm |
Crimps per charge | 150 times (Cu 150mm2 ) |
crimping cycle | 4-12s (depends on the size of cable) |
Battery voltage | 18V |
Battery capacity | 3.0 Ah |
Charging time | 2hours |
Package | Plastic case |
Accessories | |
crimping Dies. | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
Battery | 2pcs |
Charger | 1pcs |
Sealing ring of cylinder | 1set |
Sealing ring safety valve | 1set |
Battery Powered Wire Crimping Tools with Micro Computer Control System
Micro computer control system-automatically detect the pressure when it is crimping, with double safety protect.
The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
