PZ-300C Mini Battery Operated Hydraulic Crimper and Cutter with Multifunction
You are here: Home » Products » Wire Installation Tools » Battery Cable Tools » PZ-300C Mini Battery Operated Hydraulic Crimper and Cutter with Multifunction

PZ-300C Mini Battery Operated Hydraulic Crimper and Cutter with Multifunction

Share to:

New version PZ-300C battery cable tool with crimping and cutting functions.

  • PZ-300
  • iGeelee
Quantity:

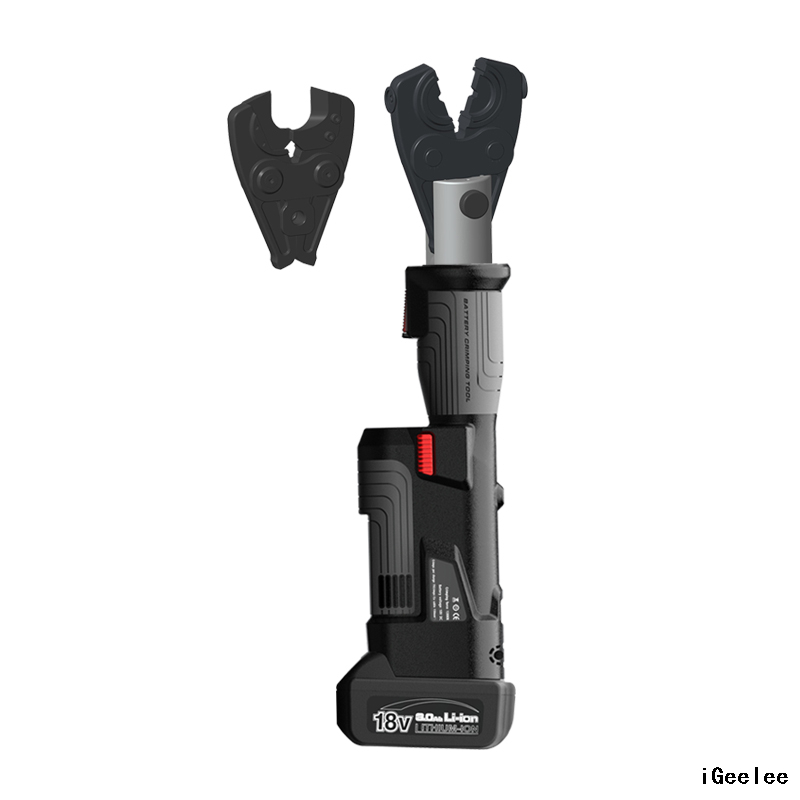

PZ-300C Mini Battery-operated Hydrauilc cable tool with crimping and cutting function


Technical Parameters:
Max. output19KN
Stroke30mm
  Crimping range  Cu 300mm2/ Al 240mm2
Cutting rangeDia. 30mm Cu/ Al cable
Size of tool363*119*75
Voltage of battery18v DC
Capacity1.5Ah
Voltage100-240v AC; 50-60HZ
PackagePlastic box
Accessories
Crimping dies: 16,25,35,50,70,95,120,150,185,240,300mm2
Battery2pcs
Charger1pcs
Sealing ring of cylinder1set
Sealing ring of safety valve1set


PZ Series with the samll size and a low weight can generate high power and performance , it is the newest addtion to the mini press tool with in-line grip, 2-4 seconds crimp cycle time.


Features


CIRCUIT BOARD DIAGNOSTICKS

Alart you when the battery is low or the tool is too hot or cold.


OlED DISPLAY

*Easy reading on.

*Battery Percentage.

*Pressing Times.

*Fault Code

*Maintenance Note


180 DEGREE SWIVELLING BARREL

Easy access to connections.


TWO STAGES  HYDRAULIC SYSTEM

Hydraulic Ram Output provides more force for reliable connection.


ERGONOMIC DESIGN

With light weight and in-line grip easy work overhead and in tight spaces.
