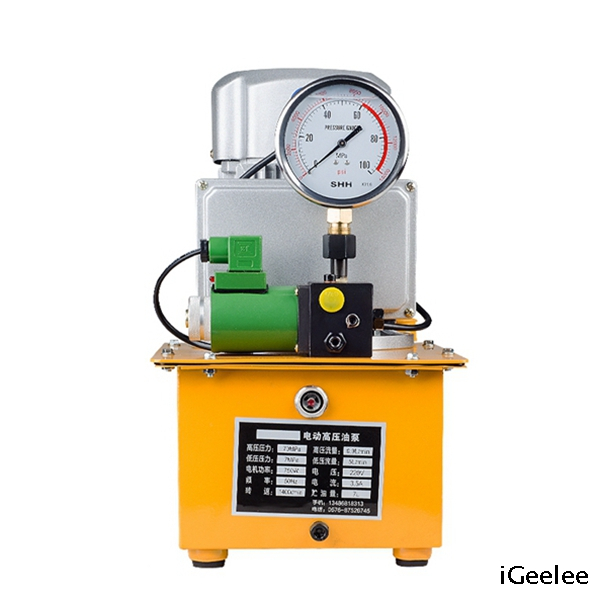

Portable Single Action Motor Oil Pump ZCB-700D Can Match Any Hydraulic Crimping Head Or Cutting Head
You are here: Home » Products » Hydraulic Pump » Electric Hydraulic Pump » Portable Single Action Motor Oil Pump ZCB-700D Can Match Any Hydraulic Crimping Head Or Cutting Head

Portable Single Action Motor Oil Pump ZCB-700D Can Match Any Hydraulic Crimping Head Or Cutting Head

Share to:

Portable Single action Hydraulic Motor Driven Pump

l High and low speed two stage for quick oil output. Turbine oil absorption could ensure max. Effective oil volume;

l High pressure is for driving piston and low pressure is for piston reset;

l Oil pipe fitted with quick coupling could be ordered at any length;

l Oil pipe coupling fitted with PT 3/8” thread.

  • ZCB-700D
  • iGeelee
Quantity:

Portable Single Action Motor Oil Pump ZCB-700D Can Match Any Hydraulic Crimping Head Or Cutting Head




         Rated Output




         0.75KW




         Motor Voltage




         220V




         Rated Pressure




         High 70Mpa,Low 7Mpa




         Capacity




         low pressure 4L/min



         high pressure 0.6L/min




         Oil reservoil capacity




         7L




         Frequency




         50HZ




         Size




         30*24*40



 Note:This type of electric pump without electric valve and foot switch.



Motor Oil Pump
Hydraulic electric pump with electric valve and foot valve,meet industry safety standards,economy


 Portable Single action Hydraulic Motor Driven Pump

 l High and low speed two stage for quick oil output. Turbine oil absorption could ensure max. Effective oil volume;

 l High pressure is for driving piston and low pressure is for piston reset;

 l Oil pipe fitted with quick coupling could be ordered at any length;

 l Oil pipe coupling fitted with PT 3/8” thread.
