Single Hole Oil Outlet Hydraulic Electric Pump DYB-63A with PT 3/8" Thread of Pipe Coupling
You are here: Home » Products » Hydraulic Pump » Electric Hydraulic Pump » Single Hole Oil Outlet Hydraulic Electric Pump DYB-63A with PT 3/8" Thread of Pipe Coupling

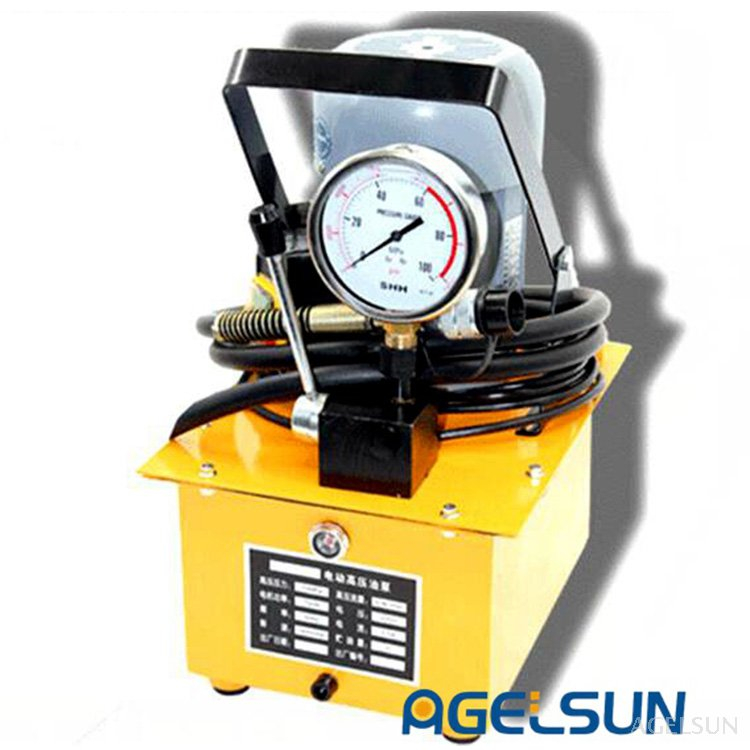

Single Hole Oil Outlet Hydraulic Electric Pump DYB-63A with PT 3/8" Thread of Pipe Coupling

Share to:

The electric pump without Solenoid valve, the basic electric pump type.

  • DYB-63A
  • iGeelee
Quantity:

 Single Hole Oil Outlet Hydraulic Electric Pump DYB-63A with PT 3/8" Thread of Pipe Coupling





         Way Of Oil Output




          Single hole oil outlet




         Motor Voltage




          220V/380V




         Rated Pressure




          63Mpa




         Capacity




          high pressure-0.8L /min



          low pressure-5L /min




         Speed




          1400r/min




         oil capacity




         8L




         Frequency




          50HZ




         Size




          360x280x500mm




         Weight




          approx.30.0kg



 Note: The electric pump without Solenoid valve.


Hydraulic electric pump meet industry safety standards,economy and portability.

 Portable Single action Hydraulic Motor Driven Pump

 l High and low speed two stage for quick oil output. Turbine oil absorption could ensure max. Effective oil volume;

 l High pressure is for driving piston and low pressure is for piston reset;

 l Oil pipe fitted with quick coupling could be ordered at any length;

 l Oil pipe coupling fitted with PT 3/8” thread.
