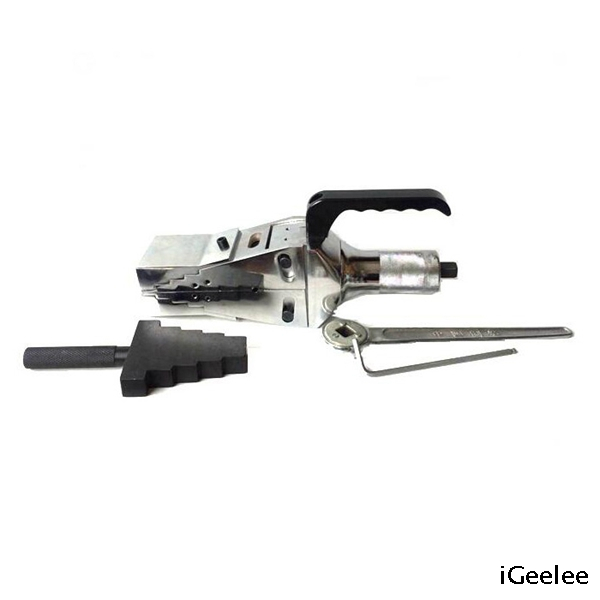

Manual Mechanical Flange Spreader FSM-8 for 77mm Max
Item No.
Output
Tip Clearance (mm)
Max. Spread (mm)
Type
Oil Capacity (cm2)
Weight (kg)
FSM-8
8T
6
77
Mechanical
/
9
FS-14
14T
6
81
Hydraulic
78
13
FSH-14
14T
6
81
Hydraulic
78
11
Mechanical Flange Spreader Features
1 A special interlocking wedge-shaped design. Without first bend, but also avoid the junction of the slip. 2 Minimum 6mm gap for hydraulic flange separator could work only. 3 Very few moving parts, solid and durable, no need to spend energy on maintenance. 4 Suit for maintenance,repair,testing and application of valve replacement.
