Hydraulic Tools To Make Your Job Easier!
Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm
You are here: Home » Products » Pipe Installation Tools » Flange Separators » Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm
Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm
Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm
Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm
Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm
Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm

Portable Hydraulic Flange Spreader YQ-30 for Dividing 62mm

Share to:

  • YQ-30
  • iGeelee
Model:
Quantity:

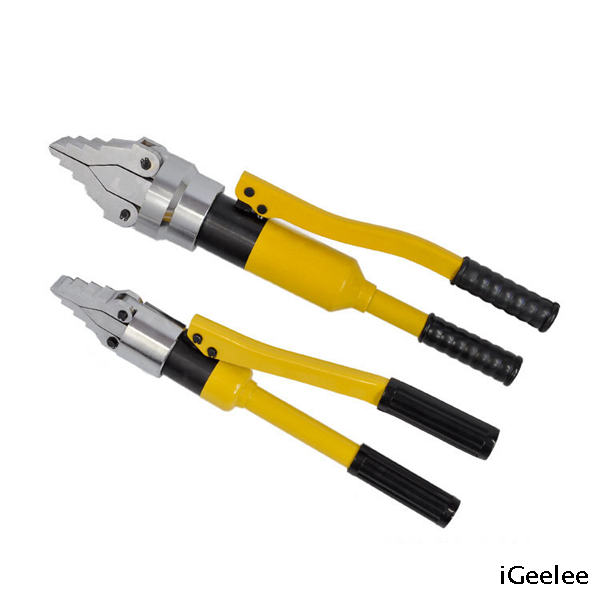

 YQ-30 Portable Hydraulic Flange Spreader

       Model       YQ-30       YQ-55
       Spreader force        6T        8T
       Min Clearance        11mm        13mm
Max. Top Spreading Distance        30mm        50mm
 Max. Bottom Spreading Distance        50mm        77mm
       Package        BAG      BAG



Hydraulic Flange Spreader Features

1 A special interlocking wedge-shaped design. Without first bend, but also avoid the junction of the slip.
2 Very few moving parts, solid and durable,  no need to spend energy on maintenance.
3 suit for maintenance,repair,testing and application of valve replacement
