PZ-4523 Battery Axial Press Tool for Air Conditioning Pipe Connecting Range 6.35-38.1mm

Share to:
sharethis sharing button
Micro computer control system with the feature of self-pressure inspecting, double protection during operation, counting and realize the exchange between computer with data by the converter.
  • PZ-4523

  • iGeelee

Availability:
Quantity:

PZ-4523 Battery Axial Press Tool for Air Conditioning Pipe Connecting Range 6.35-38.1mm



Products Description

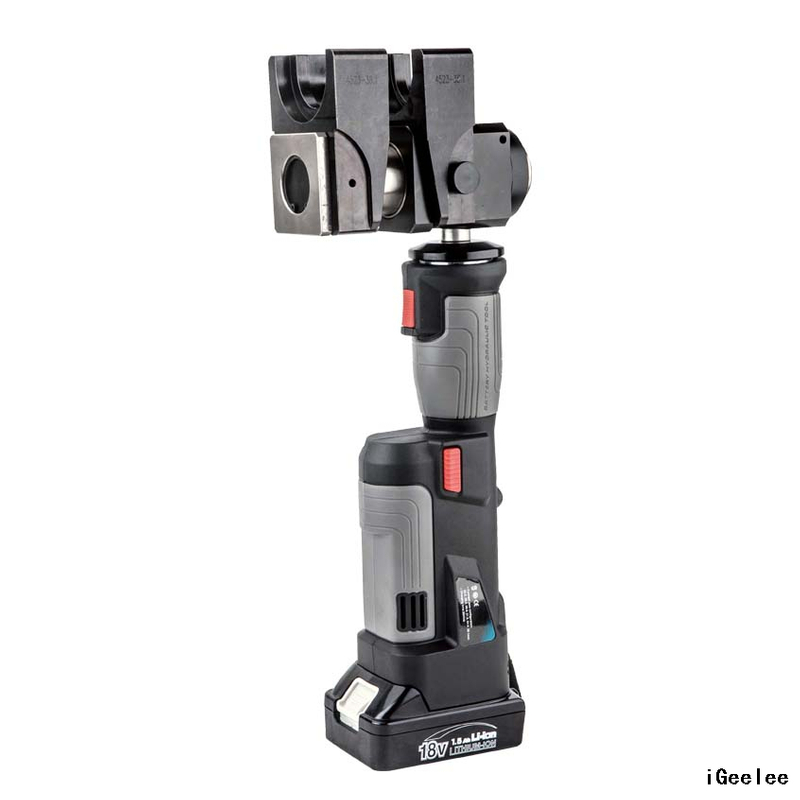

PZ-4523 is the newest addition to the axial press tool for air conditioning pipe connecting. It is powered by Li-ion, actuated by motor and controlled by MCU. With double valve hydraulic system, tis a perfect tool to be used in air conditioninq systems, heatinq systems, refrigeration systems and water supply systems.
Output
45KN
Stroke
23mm
Battery
18V Li-ion 2.5Ah
Battery Charger
AC 100-240V
Service Interval
30000 cycles
Tool Size
380x155x75mm
Accessories:
Battery
2pcs
Charger
1pc
Sealing ring of cylinder
1set
Sealing ring of safety valve
1set
Connecting jaws(optional)
6.35,9.52,12.7,15.88,19.05,22.2,25.4,28.6,31.8,34.9,38.1mm

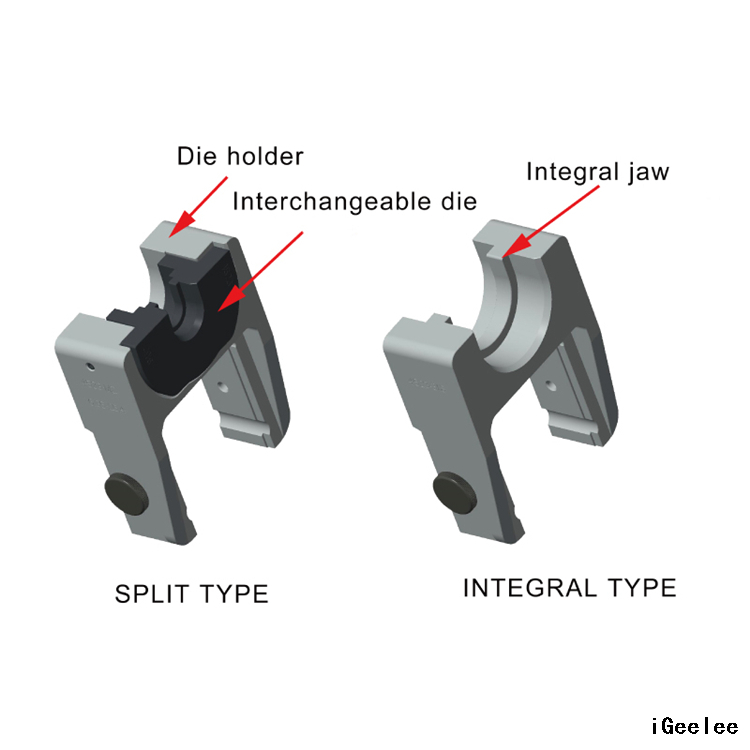

Note: The dies for tool is optional , there are split type and integral type:Split type: 6.35,9.52,12.7,15.88,19.05,22.2,25.4mm
Integral type: 28.6,31.8,34.9,38.1mm

 iGeelee Battery Axial Press Tool PZ-4523 for Air Conditioning Pipe Connecting Range 6.35-38.1mm (7)iGeelee Battery Axial Press Tool PZ-4523 for Air Conditioning Pipe Connecting Range 6.35-38.1mm (8)


1. 350° rotary head with flip top crimping head , working at any site.

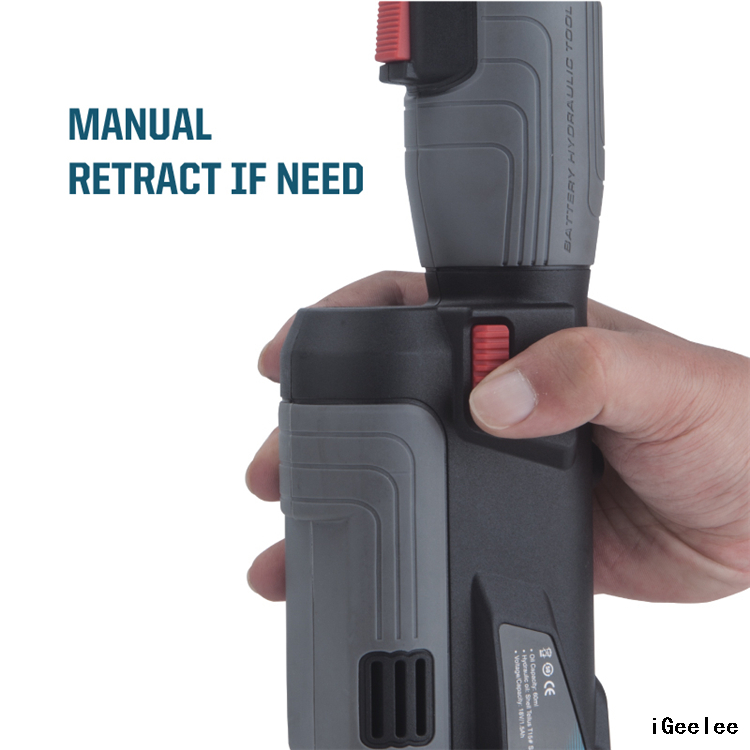

2. Sudden suspend function can be controlled at any time, even can retract manually.

3. According to ergonomic design with antislip handle.

4. Micro computer control system with the feature of self-pressure inspecting, double protection during operation, counting and realize the exchange between computer with data by the converter.

5. High performance Li-ion battery to provide stronger power soure, no discharge memory effects, one time charge 300 times can be effective for crimping.

6. LED light make your working comfortable in dark environment.

7. Precision hydraulic valve control system and electric sensor control system of double safety monitoring protection.

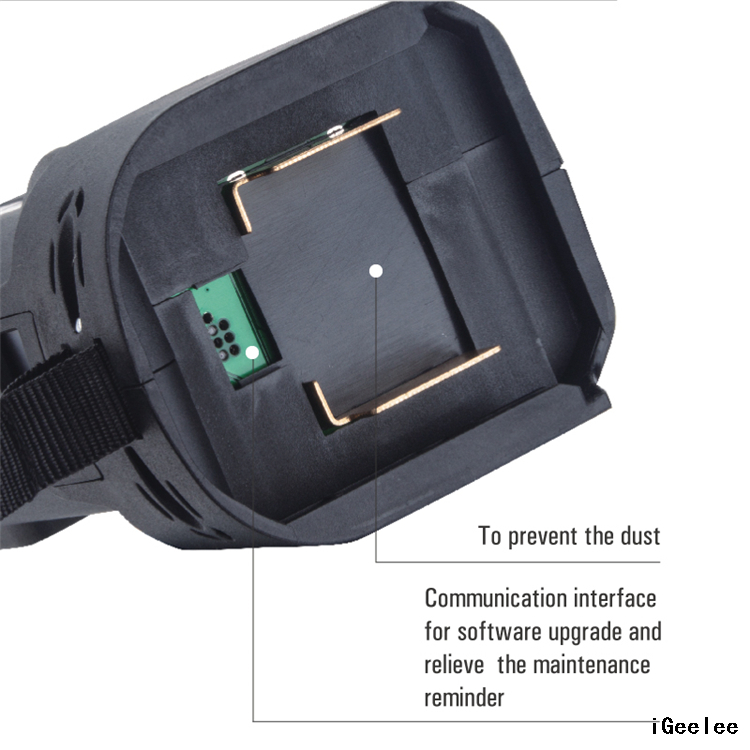

8. USB connect to memory crimping time
