PZ-6AL Mini Type Battery Powered Punch Driver for 3.5mm Mild Metal Sheet 22.5-61.5mm
You are here: Home » Products » Busbar Processing Machine » Hole Punch Tools » PZ-6AL Mini Type Battery Powered Punch Driver for 3.5mm Mild Metal Sheet 22.5-61.5mm

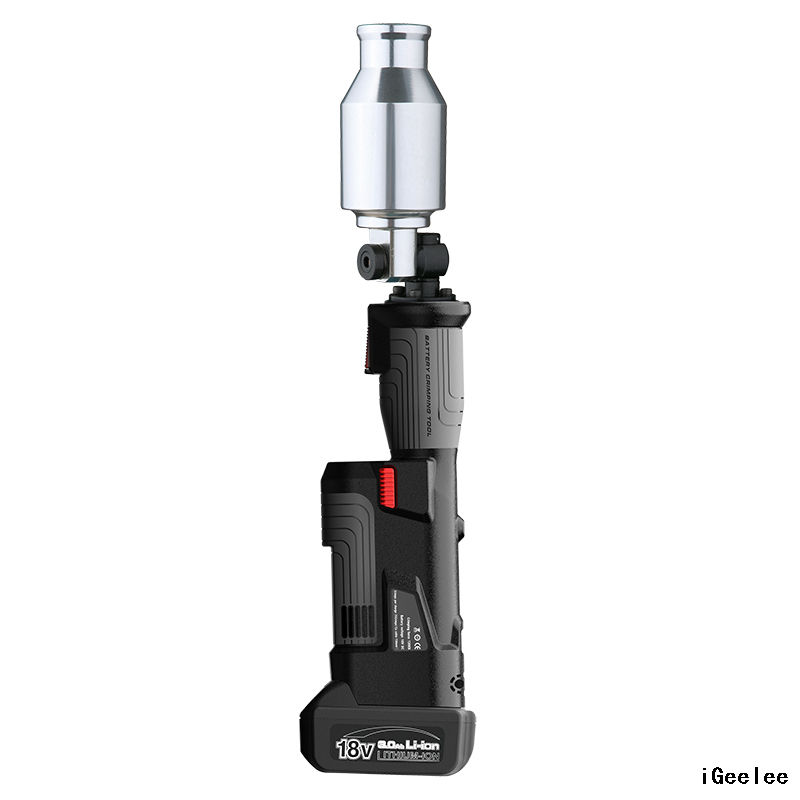

PZ-6AL Mini Type Battery Powered Punch Driver for 3.5mm Mild Metal Sheet 22.5-61.5mm

Share to:

*CIRCUIT BOARD DIAGNOSTICKS
Alart you when the battery is low or the tool is too hot or cold.
* Punch Dies of 22.5,28.3,34.6,43.2,49.6,61.5mm

  • PZ-6AL
  • iGeelee
Quantity:

PZ-6AL Mini Type Battery Powered Punch Driver for 22.5,28.3,34.6,43.2,49.6,61.5mm

Punching force60KN
Stroke25mm
Size of tool452x120x75mm
Thread of piston3/4-19UN
Time/charge250times(Max.mild steel 3mm,dia49.6mm)
Voltage of battery 18V
Capacity 1.5Ah
Voltage100-240V AC
3.5mm mild steelMax.punching hole 61.5mm(pipe conduct 2")
2mm mild steelMax punching hole161.9mm( pipe conduct 2")
2mm stainless steelMax punching hole 61.5mm( pipe conduct 2")
Accessories
22.5,28.3,34.6,43.2,49.6,61.5mm
Draw stud:7/16"x3/4"1pc
Draw stud:3/4"x3/4"1pc
Sealing kit1set
Battery2pcs
Charger1pc
Spacer1pc
Plastic case1pc

1. 180o x 360orotary punching head suit to working in narrow space.

2. One trigger to operate and retraction in automatic or manual.

3. According to human body design with antislip handle, easy to hold.

4. Microcomputer control system inside, double safety protection.

5. LED light ensure to working in dark site.


Features


CIRCUIT BOARD DIAGNOSTICKS

Alart you when the battery is low or the tool is too hot or cold.


OlED DISPLAY

*Easy reading on.

*Battery Percentage.

*Pressing Times.

*Fault Code

*Maintenance Note


180 DEGREE SWIVELLING BARREL

Easy access to connections.


TWO STAGES  HYDRAULIC SYSTEM

Hydraulic Ram Output provides more force for reliable connection.


ERGONOMIC DESIGN

With light weight and in-line grip easy work overhead and in tight spaces.
