Multifunctional Electro Hydraulic Power Tool BZ-60UNV with Battery for Cu And Al Cable,function of Crimping,cutting And Punching

Share to:
sharethis sharing button
A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.
  • BZ-60UNV

  • iGeelee

Availability:
Quantity:

Multifunctional Electro Hydraulic Power Tool  BZ-60UNV with Battery for Cu And Al Cable,function of Crimping,cutting And Punching


Crimping Force      60KN
Stroke      42mm
Cutting Cycle      70 times
Cutting Range      Φ40mm(Cu/Al and armored cable)
Crimping Cycle      320 times
Crimping Range      16-300mm2
Punching Cycle      100 times
Punching Range      Φ22.5-Φ61.5
Round punch Max.      61.5mm
Battery voltage      18V
Battery capacity      3.0 Ah
Charging time      2hours
Package      Steel case
Accessories

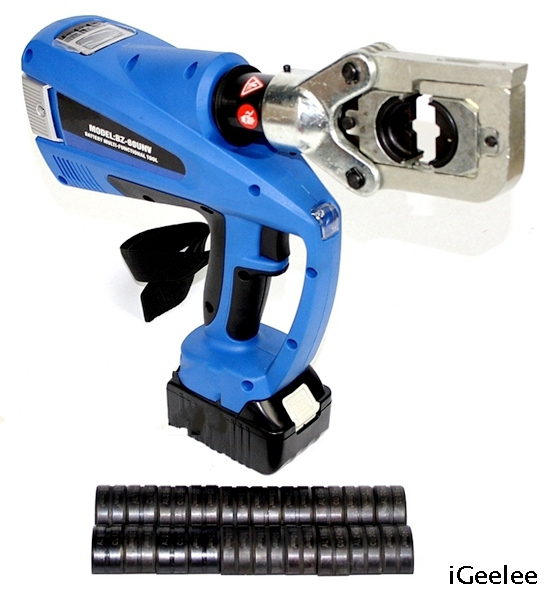

Crimping dies      16, 25, 35, 50, 70, 95, 120, 150,
185, 240, 300mm2
Punches&die(Type C)      22.5, 28.3, 34.6, 43.2, 49.6, 61.5mm
Blade      1 set
Adapter for crimping      1 pc
Adapter for punching      1 pc
3/4", 16UN Draw stud      1 pc
7/16, 20UN Draw stud      1 pc
Spacer      1 pc
Battery      2 pcs
Charger      1 pc
Sealing ring of cylinder      1 set
Sealing ring safety valve      1 set

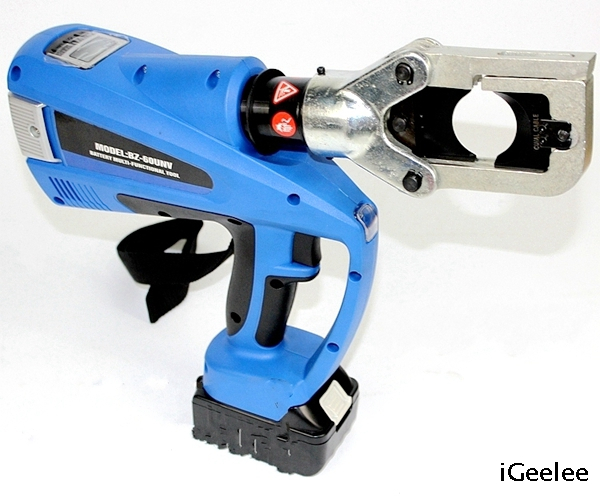

BZ-60UNV Multifunction Electro Hydraulic Power Tool with Battery for 16-300mm2 Cu and Al cable,function of crimping,cutting and punching

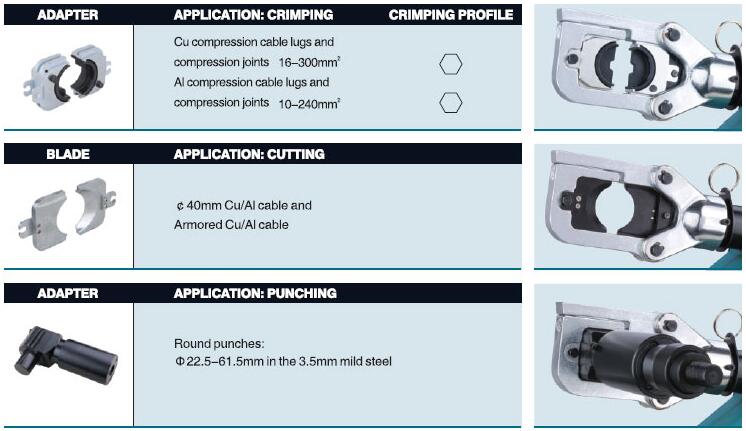

Multifunction Power Tool with Battery,crimping dies of 16,25,35,50,70,95,120,150,185,240,300mm2,punches dies of 22.5,28.3,34.6,43.2,49.6,61.5mm2,for Cu compression cable lugs and compression joints 16-300mm2,Al compression cable lugs and compression joints 10-240mm2,Blade for φ40mm Cu/Al cable and Armored Cu/Al cable,round pounches forφ22.5-61.5mm in the 3.5mm middle steel

Multifunction Power Tool with Battery for 16-300mm2 Cu and Al cable,function of crimp,cut and strip.



The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.

A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.

 The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.



   The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.



   Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.



   A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
