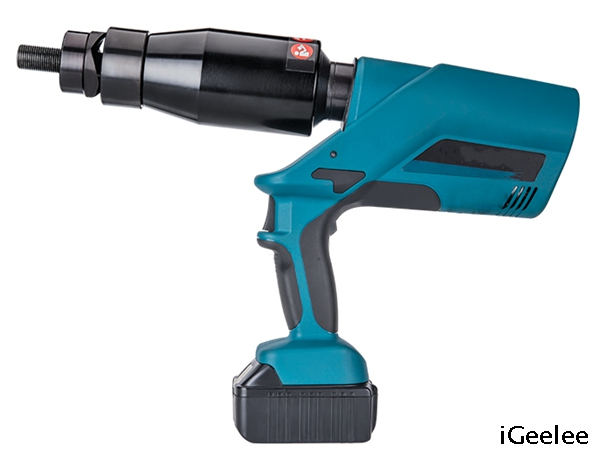

Battery Powered Hole Punch Tools ED-12 for Mild Metal Sheet

Share to:
Dies of 22.50mm 28.30mm 34.60mm 43.20mm 49.60mm 61.50mm
  • EZ-12
  • iGeelee

 Battery Powered Hole Punch Tools ED-12 for Mild Metal Sheet

Punching Force


Stroke     27mm
Punch/ charge

180 times

Battery voltage


Battery capacity

3.0 Ah, Li-ion

Maximum Round Punch Size(in 3.5mm mild steel)

61.5mm dia

Charging time



Plastic Box





Φ(INCH)     Φmm
1/2"Conduit Punch&Die     7/8"    .88522.50
3/4"Conduit Punch & Die


1.115   28.30
1"Conduit Punch & Die


1.362 34.60
1-1/4"Conduit Punch & Die


1-1/2"Conduit Punch & Die
2"Conduit Punch & Die
7/16"X3/4" Draw Stud   1 pc
3/4X3/4" Draw Stud
1 pc
Spencer   1 pc
Sealing Kit  1 pc
Battery 2pcs
Charger   1pcs
Sealing ring of cylinder   1set
Sealing ring safety valve    1set


BZ&EZ Battery Hole Punch Tool for mild metal sheet of different hole size, suit to working in narrow space

 The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.

 A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.

 The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.

 The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.

 Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.

 A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
