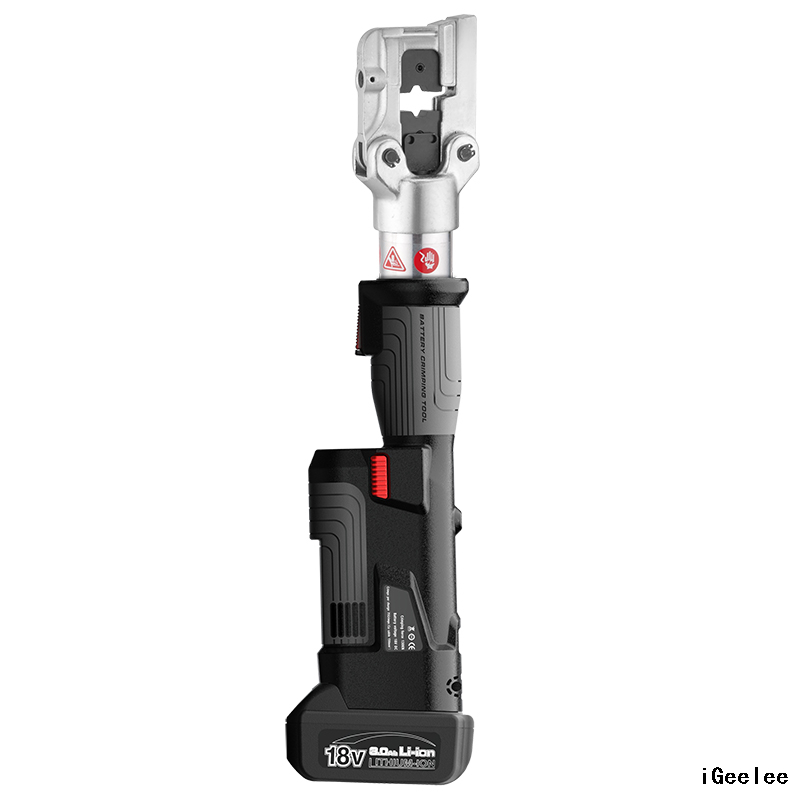

Portable Battery Cable Crimper PZ-240 with Li-ion Battery,for Cable of 16,25,35,50,70,95,120,150,185,240mm2
Share to:
PZ-240 with the samll size and a low weight can generate high power and performance , it is the newest addtion to the mini press tool with in-line grip, 2-4 seconds crimp cycle time.
Portable Battery Cable Compression Tool PZ-240 with Li-ion Battery,for Cable of 16,25,35,50,70,95,120,150,185,240mm2
Crimping Force
50KN
Stroke
14mm
Crimping Range
Cu 240mm2/ AL 185mm2
Crimping cycle
2.5-4s (depends on the size of cable)
Battery voltage
18V, 1.5Ah
Charging time
30 mins
Package
Plastic case
Accessories
Crimping Dies.
16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm2
Battery
2pcs
Charger
1pcs
Sealing ring of cylinder
1set
Sealing ring safety valve
1set
PZ Series with the samll size and a low weight can generate high power and performance , it is the newest addtion to the mini press tool with in-line grip, 2-4 seconds crimp cycle time.
Features
CIRCUIT BOARD DIAGNOSTICKS
Alart you when the battery is low or the tool is too hot or cold.
OlED DISPLAY
*Easy reading on.
*Battery Percentage.
*Pressing Times.
*Fault Code
*Maintenance Note
180 DEGREE SWIVELLING BARREL
Easy access to connections.
TWO STAGES HYDRAULIC SYSTEM
Hydraulic Ram Output provides more force for reliable connection.
ERGONOMIC DESIGN
With light weight and in-line grip easy work overhead and in tight spaces.
Portable Battery Cable Compression Tool PZ-240 with Li-ion Battery,for Cable of 16,25,35,50,70,95,120,150,185,240mm2
Crimping Force
50KN
Stroke
14mm
Crimping Range
Cu 240mm2/ AL 185mm2
Crimping cycle
2.5-4s (depends on the size of cable)
Battery voltage
18V, 1.5Ah
Charging time
30 mins
Package
Plastic case
Accessories
Crimping Dies.
16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm2
Battery
2pcs
Charger
1pcs
Sealing ring of cylinder
1set
Sealing ring safety valve
1set
PZ Series with the samll size and a low weight can generate high power and performance , it is the newest addtion to the mini press tool with in-line grip, 2-4 seconds crimp cycle time.
Features
CIRCUIT BOARD DIAGNOSTICKS
Alart you when the battery is low or the tool is too hot or cold.
OlED DISPLAY
*Easy reading on.
*Battery Percentage.
*Pressing Times.
*Fault Code
*Maintenance Note
180 DEGREE SWIVELLING BARREL
Easy access to connections.
TWO STAGES HYDRAULIC SYSTEM
Hydraulic Ram Output provides more force for reliable connection.
ERGONOMIC DESIGN
With light weight and in-line grip easy work overhead and in tight spaces.
