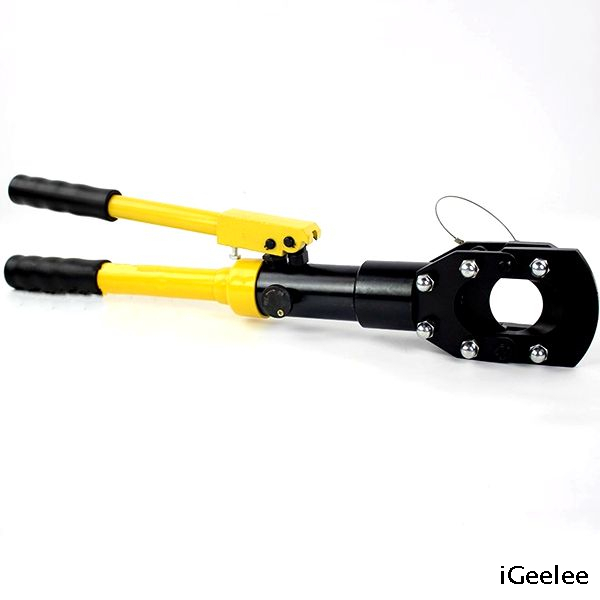

CPC-40A/CPC-50A/40BL ACSR Hydraulic Cable Cutting Tool Used for 40mm Electrical Wire
Share to:
1 Hand operated hydraulic tool specifically designed to cut copper, aluminum and tele cables having a max overall diameter 40mm to 85mm. 2 The hydraulic cable cutter tool features a double speed action: a fast advancing speed for rapid approach of blades to the cable and as lower powerful speed for cutting. 3 The blades are manufactured from high strength special steel, heat treated to ensure a long service life. 4 The head can be easily opened to allow the cutting of running cables.
CPC-40A/CPC-50A/CPC-40BL ACSR Hydraulic Cable Cutting Tool Used for 40mm Electrical Wire
Output
60KN
60KN
60KN
Cutting Capacity
￠40mm max. (for telephone cable)
￠32mm max. (for armored Cu/Alu cable)
￠50mm max. (for telephone cable)
￠45mm max. (for armored Cu/Alu cable)
￠40mm max. (for ASCR cables)
￠28mm max. (for steel wire multi-strands)
Length
approx. 580mm
approx. 630mm
approx. 600mm
Weight
8.25 kg
10.4 kg
8.90kg
Package
Steel case
Steel case
Steel case
Hydraulic cable cutter used for electrical wire,Tel cable and Cu/Alu cable.
1 Hand operated hydraulic tool specifically designed to cut copper, aluminum and tele cables having a max overall diameter 40mm to 85mm.
2 The hydraulic cable cutter tool features a double speed action: a fast advancing speed for rapid approach of blades to the cable and as lower powerful speed for cutting.
3 The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
4 The head can be easily opened to allow the cutting of running cables.
