Battery Cable Cutter BZ-85 for Φ85mm Cu/Al Cable And Armoured Cable
You are here: Home » Products » Wire Installation Tools » Battery Cable Tools » Battery Cable Cutter BZ-85 for Φ85mm Cu/Al Cable And Armoured Cable

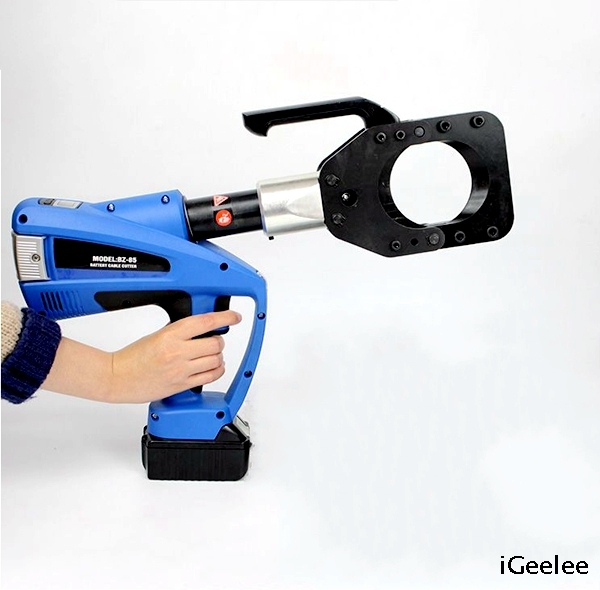

Battery Cable Cutter BZ-85 for Φ85mm Cu/Al Cable And Armoured Cable

Share to:

A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.

  • BZ-85
  • iGeelee
Quantity:

 Battery Cable Cutter BZ-85 for Φ85mm Cu/Al Cable And Armoured Cable



Cutting Force 60KN
Stroke    86mm
Cutting range
Φ85mm (Cu/Al cable and armored cable)
Cutting cycle    70 times
Battery voltage
18V
Battery capacity   3.0 Ah
Charging time     2hours
Package    Steel case
Accessories
Blade   1pc
Battery    2pcs
Charger    1pcs
Sealing ring of cylinder  1set
Sealing ring safety valve  1set



Battery Powered Cable cutter BZ&EZ-85 Series cutting tools with battery powered for cutting Cu/Al and armoured cable, which charging time for 2hours

The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.

A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.

The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.

The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.

Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.

A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
