Professional- one key control. Press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means pistion return to the original position.
  • BZ-65C/ 85C/105C

  • iGeelee

Availability:
Quantity:

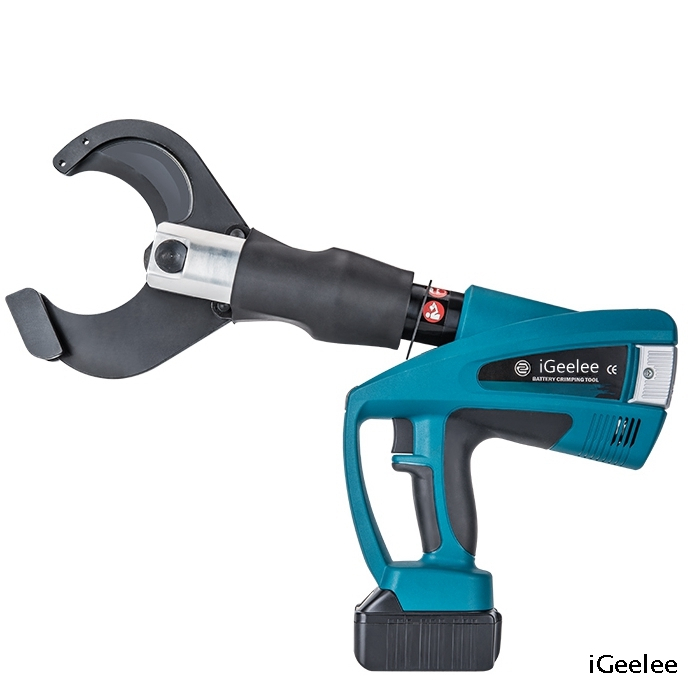

Battery Cable Cutter BZ-105C with opening C type cutting head

Model:BZ-65CBZ-85C       BZ-105C
Cutting range:       ¢65mm       ¢85mm       ¢105mm
Rated output:       60KN       60KN       120KN
Rated pressure:       63Mpa       63Mpa       66Mpa
Cutting cycle:       3-8s(depend on size of cable)       5-15s(depend on size of cable)
Max.pressure:       70Mpa
Cable:       Cu/Al cable,armored Cu/Al cable
Battery:       DC 18V 3.0Ah Li-ion battery
Charging voltage:       AC 100V-240V,50-60Hz
Charging time:       2 hours
Retraction mode:       Piston retraction
Hydraulic oil:       Shell Tellus T15
Working Temperature:       -10~40℃

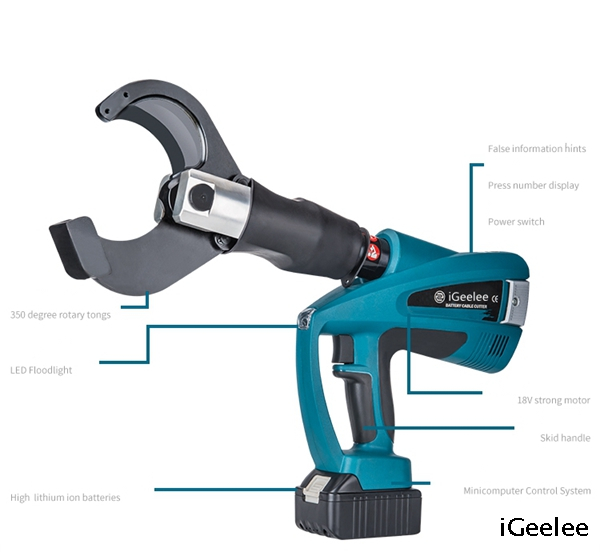

Safety-double protection. Adopt high-precision hydraulic safety valve and electrical sensor controlling.


Professional- one key control. Press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means pistion return to the original position.


Effeciency- Adpot high efficiency motor output the power, double hydraulic stages alternately ensure the piston move fast.


Durable- Select high quality material and perfect production process guarantee the life span of tool.


Simple and convenient- Opening C type cutting head.
