Single Action Hydraulic Hollow Plunger Cylinder RCH Series with Mid-empty Designed And Wide Apply
You are here: Home » Products » Hydraulic Jacks & Log Splitters » Hydraulic Jacks » Single Action Hydraulic Hollow Plunger Cylinder RCH Series with Mid-empty Designed And Wide Apply

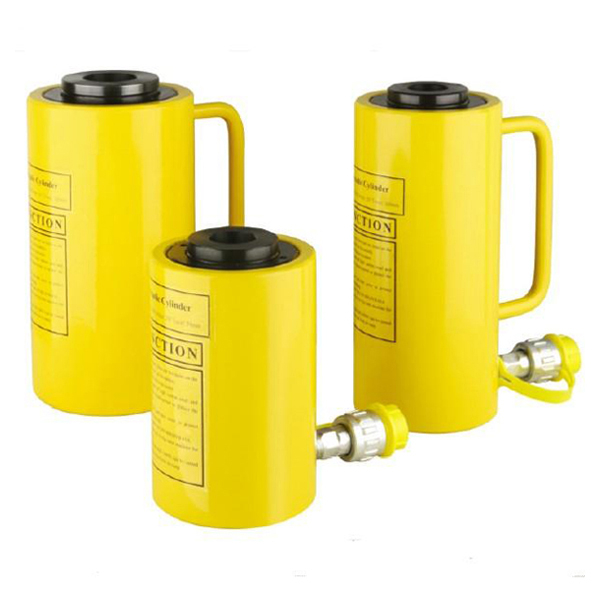

Single Action Hydraulic Hollow Plunger Cylinder RCH Series with Mid-empty Designed And Wide Apply

Share to:

iGeelee Single action Hydraulic Hollow Plunger Cylinder RCH Series with mid-empty designed and wide apply, Steel base plate and saddle for protection the hollow piston and cylinder damage and increasing abrasion performance

  • RCH
  • iGeelee
Quantity:

Single Action Hydraulic Hollow Plunger Cylinder RCH Series with Mid-empty Designed And Wide Apply



         ITEM NO




         RCH-10100




         RCH-20100




         RCH-30100




         RCH-50100




         RCH-100100




         RCH-200100




         Output




         10T




         20T




         30T




         50T




         100T




         200T




         Stroke




         100mm




         100mm




         100mm




         100mm




         100mm




         100mm




         Effective area




         15.89cm2




         33.16cm2




         50.24cm2




         78.5cm2




         143.06cm2




         302.5cm2




         Height of products




         155mm




         155mm




         161mm




         161mm




         171mm




         186mm




         Extended height




         255mm




         255mm




         261mm




         261mm




         271mm




         286mm




         Outside




         63mm




         88mm




         108mm




         128mm




         178mm




         247mm




         Bore die




         45mm




         65mm




         80mm




         100mm




         135mm




         163.5mm




         Weight




         3.4KG




         6.2KG




         9.6KG




         12.6KG




         26.5KG




         65KG



 RCH Series Single action Hydraulic Hollow Plunger cylinder-

RCH Series Single Hydraulic Cylinder with the output 20-100 reach the working pressure 70Mpa. Mid-empty designed and wide apply.



   1. Steel base plate and saddle for protection the hollow piston and cylinder damage and increasing abrasion performance.
   2. Dust ring stop the dust into cylinder during extension.
   3. Floating type plunger prevents the block caused by slight unbalance loading of piston.
   4. Step-limited piston prevents over-travel and is capable of stopping the spring compressed completely
   5. Wear ring prevent metal to metal contact,increasing cylinder life and resistance to be scretched
   6. High-efficient seal extends cylinder life
   7. Handles included on all models

 Feature:
 *Mid-empty designed and wide apply.
 *Each type contains the quick coupler.
 *Principal axis have the function of auto-reback.
 *Prevent rustwith aril lacquer.
