Single Action Hydraulic Steel Cylinder RSC Series Has The Characteristic of Low Collapsed Height
You are here: Home » Products » Hydraulic Jacks & Log Splitters » Hydraulic Jacks » Single Action Hydraulic Steel Cylinder RSC Series Has The Characteristic of Low Collapsed Height
Single Action Hydraulic Steel Cylinder RSC Series Has The Characteristic of Low Collapsed Height Single Action Hydraulic Steel Cylinder RSC Series Has The Characteristic of Low Collapsed Height

loading

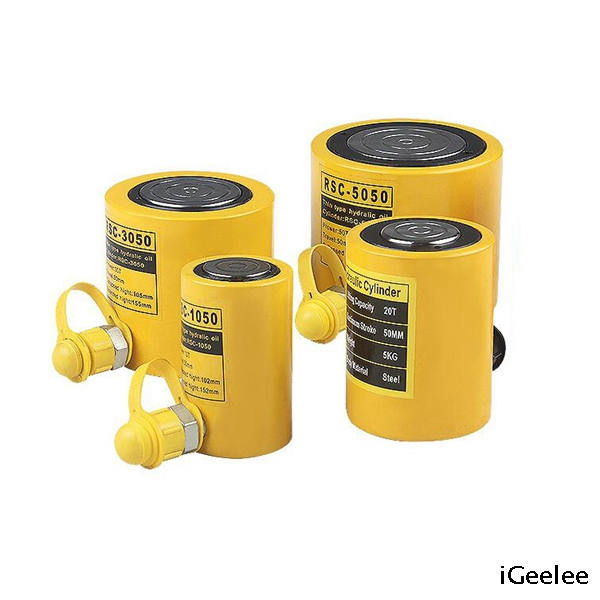

Single Action Hydraulic Steel Cylinder RSC Series Has The Characteristic of Low Collapsed Height

Share to:
sharethis sharing button
Hydraulic Cylinder RC Series 1 Hydraulic cylinder has the characteristic of low collapsed height, if the requirement of stroke need to be higher than RMC series, RC series is suit for this case. 2 The surface of principle axis is finished with chrome plate to protect the using of longevity of the product. 3 Plunger has the function of retracting automatically WRSC rotary head, can work in bevel.
  • RSC Series

  • iGeelee

Availability:
Quantity:

Single Action Hydraulic Steel Cylinder RC Series



         ITEM NO




         RSC-1050




         RSC-2050




         RSC-3050




         RSC-5050




         RSC-10050




         Tonnage




         10T




         20T




         30T




         50T




         100T




         Stroke




         50mm




         50mm




         50mm




         50mm




         50mm




         Cylinder Effective area




         11.3cm2




         22cm2




         31.1cm2




         56.7cm2




         95cm2




         Collapsed Height




         96mm




         98mm




         104mm




         104mm




         136mm




         Extended Height




         146mm




         148mm




         154mm




         154mm




         186mm




         Outside Dia.




         62mm




         88mm




         105mm




         128mm




         175mm




         Cylinder Bore dia.




         45mm




         65mm




         75mm




         95mm




         130mm




         Thread for input oil-port(ZG)




         3/8"-19




         3/8"-19




         3/8"-19




         3/8"-19




         3/8"-19




         Weight




         2.4KG




         4.4KG




         6.4KG




         9.4KG




         20.4KG





 RC Series Single Action Hydraulic Steel Cylinder-

Hydraulic Cylinder RC Series

 1 Hydraulic cylinder  has the characteristic of low collapsed height, if the requirement of stroke need to be higher than RMC series, RC series is suit for this case.

 2 The surface of principle axis is finished with chrome plate to protect the using of longevity of the product.

 3 Plunger has the function of retracting automatically WRSC rotary head, can work in bevel.
