BZ-12
iGeelee
| Availability: | |
|---|---|
| Quantity: | |

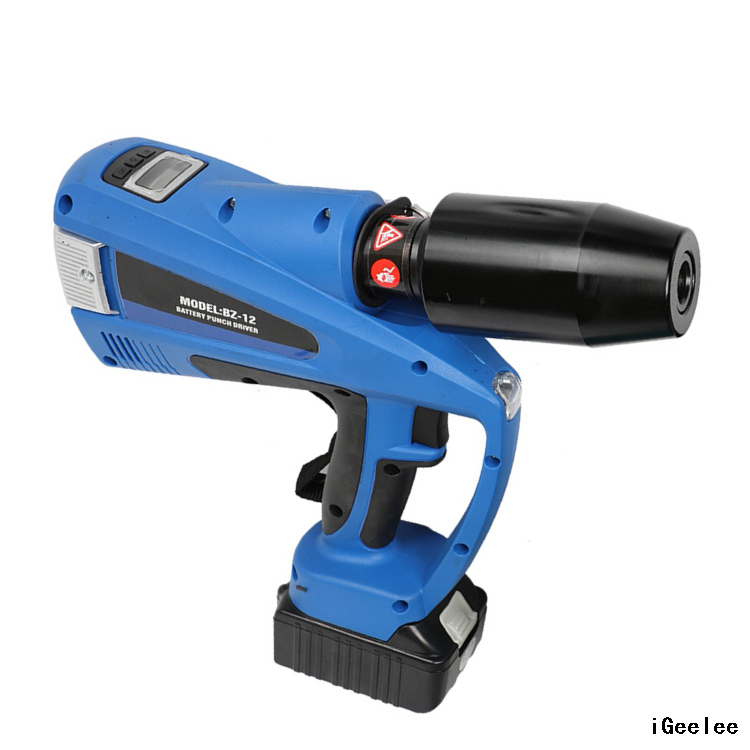

Battery Powered Hole Punch Tools BZ-12 Range 0.885-2.146 Inch for Mild Metal Sheet of Different Hole Size
| Clamping Force | 120KN | |||
| Stroke | 27mm | |||
| Punch/ charge | 180 times | |||
| Battery voltage | 18V | |||
| Battery capacity | 3.0 Ah, Li-ion | |||
| Maximum Round Punch Size(in 3.5mm mild steel) | 61.5mm dia | |||
| Charging time | 2hours | |||
| Package | Plastic Box | |||

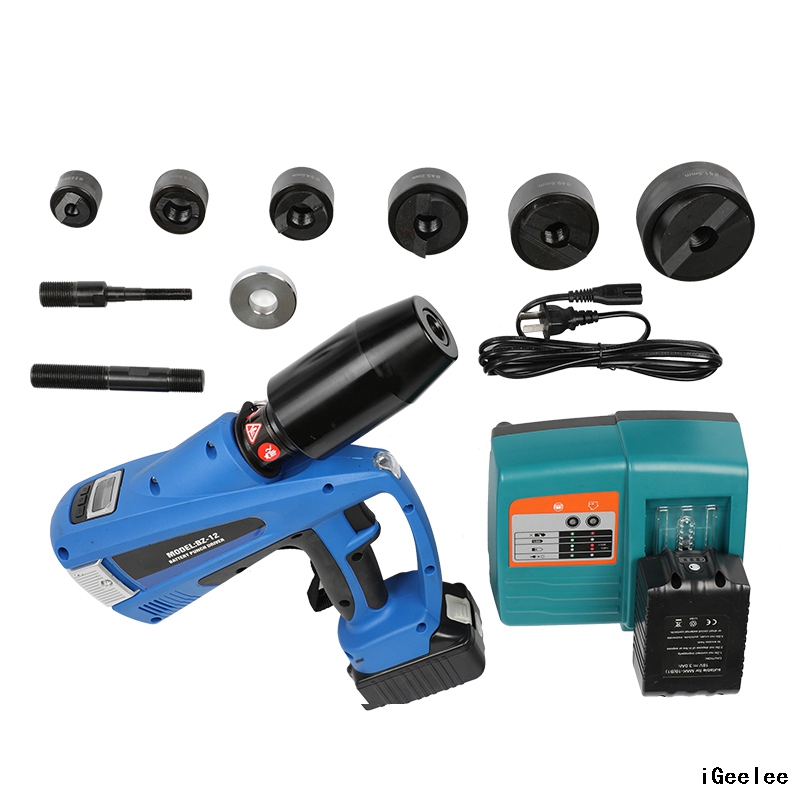

| Accessories | ||||
| DESCRIPTION | HOLE SIZE (TYPE C) | |||
|
| Φ(INCH) | Φmm | ||
| 1/2"Conduit Punch&Die | 7/8" | .885 | 22.50 | |
| 3/4"Conduit Punch&Die |
| 1.115 | 28.30 | |
| 1"Conduit Punch&Die |
| 1.362 | 34.60 | |
| 1-1/4"Conduit Punch&Die |
| 1.701 | 43.20 | |
| 1-1/2"Conduit Punch&Die | 1-15/16 | 1.951 | 49.60 | |
| 2"Conduit Punch&Die | 2-3/8 | 2.146 | 61.50 | |
| 7/16"X3/4" Draw Stud | 1 pc | |||
| 3/4X3/4" Draw Stud | 1 pc | |||
| Spencer | 1 pc | |||
| Sealing Kit | 1 pc | |||
| Battery | 2pcs | |||
| Charger | 1pcs | |||
| Sealing ring of cylinder | 1set | |||
| Sealing ring safety valve | 1set | |||
BZ&EZ Battery Hole Punch Tools range 0.885-2.146 inch for mild metal sheet of different hole size, suit to working in narrow space
Micro computer control system-automatically detect the pressure when it is crimping, with double safety protect.
Pressure released automatically Function-the tool stop forcing the pressing and release 90% pressure when the pressure reached maximum.
The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
Battery Powered Hole Punch Tools BZ-12 Range 0.885-2.146 Inch for Mild Metal Sheet of Different Hole Size
| Clamping Force | 120KN | |||
| Stroke | 27mm | |||
| Punch/ charge | 180 times | |||
| Battery voltage | 18V | |||
| Battery capacity | 3.0 Ah, Li-ion | |||
| Maximum Round Punch Size(in 3.5mm mild steel) | 61.5mm dia | |||
| Charging time | 2hours | |||
| Package | Plastic Box | |||
| Accessories | ||||
| DESCRIPTION | HOLE SIZE (TYPE C) | |||
|
| Φ(INCH) | Φmm | ||
| 1/2"Conduit Punch&Die | 7/8" | .885 | 22.50 | |
| 3/4"Conduit Punch&Die |
| 1.115 | 28.30 | |
| 1"Conduit Punch&Die |
| 1.362 | 34.60 | |
| 1-1/4"Conduit Punch&Die |
| 1.701 | 43.20 | |
| 1-1/2"Conduit Punch&Die | 1-15/16 | 1.951 | 49.60 | |
| 2"Conduit Punch&Die | 2-3/8 | 2.146 | 61.50 | |
| 7/16"X3/4" Draw Stud | 1 pc | |||
| 3/4X3/4" Draw Stud | 1 pc | |||
| Spencer | 1 pc | |||
| Sealing Kit | 1 pc | |||
| Battery | 2pcs | |||
| Charger | 1pcs | |||
| Sealing ring of cylinder | 1set | |||
| Sealing ring safety valve | 1set | |||
BZ&EZ Battery Hole Punch Tools range 0.885-2.146 inch for mild metal sheet of different hole size, suit to working in narrow space
Micro computer control system-automatically detect the pressure when it is crimping, with double safety protect.
Pressure released automatically Function-the tool stop forcing the pressing and release 90% pressure when the pressure reached maximum.
The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
