Hydraulic Punch Driving Machine CH-100 for Digging Max Diameter 32mm, with Dies of 22mm, 25mm, 28mm, 32mm

Share to:
sharethis sharing button
1.Punching the different kind of metal sheet up to 20mm 2.It can match electric pump ZCB-700AB. 3.High-strength return spring for rapid cylinder retraction. 4.High-hardness of material for punching die, easier for operation. 5.Half-opened casting body, widely use in different areas.

  • CH-100

  • iGeelee

Model:

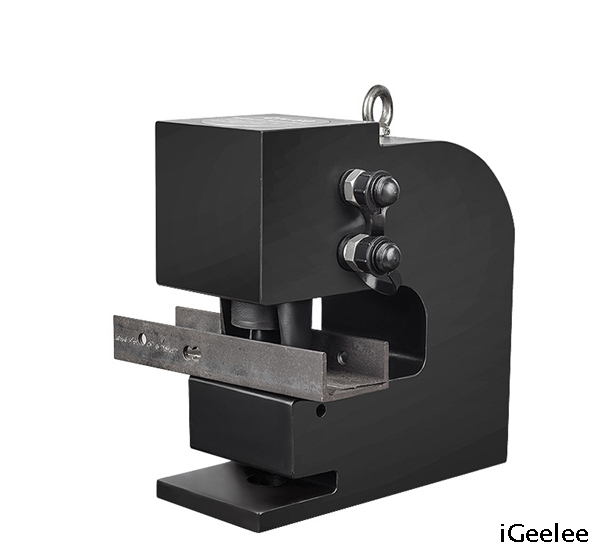

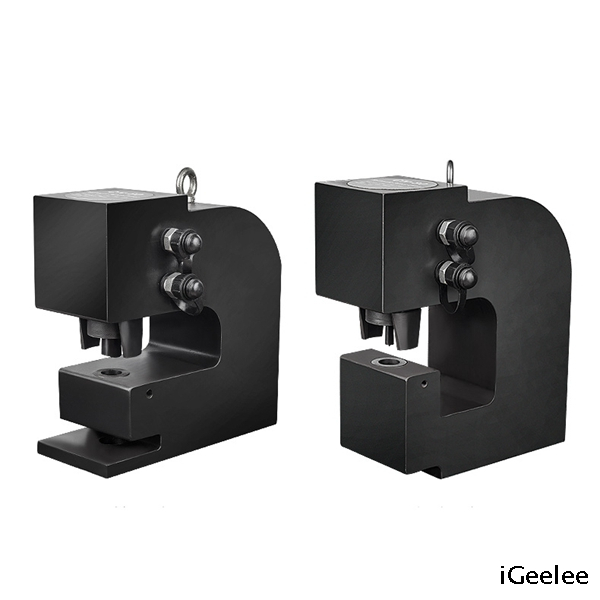

for angle steel
for H type steel
Availability:
Quantity:
Inquire Add to Basket

Hydraulic Punch Driving Machine CH-100 for Digging Max Diameter 32mm, with Dies of 22mm, 25mm, 28mm, 32mm

       Punching force       100T
       Max thickness       20mm of steel sheet/
       24mm of copper sheet
       Depth of throat       130mm
       Max Diameter       32mm
       Weight       125KG
       Accessories       22mm,25mm,28mm,32mm

Related pump:Hydraulic electric pump with electromagnet.ZCB-700AB.


Hydraulic Hole Punch Tools

 1.Punching the different kind of metal sheet up to 20mm

 2.It can match electric pump ZCB-700AB.

 3.High-strength return spring for rapid cylinder retraction.

 4.High-hardness of material for punching die, easier for operation.

 5.Half-opened casting body, widely use in different areas.
