Copper Bus Bar Bending Machine CB-125D for Bending Thickness 12mm Max of Cu/AL Sheet;10mm Max of Steel Plate Sheet
You are here: Home » Products » Busbar Processing Machine » Hole Punch Tools » Copper Bus Bar Bending Machine CB-125D for Bending Thickness 12mm Max of Cu/AL Sheet;10mm Max of Steel Plate Sheet

Copper Bus Bar Bending Machine CB-125D for Bending Thickness 12mm Max of Cu/AL Sheet;10mm Max of Steel Plate Sheet

Share to:

The bending machine can work with pump.

  • CB-125D
  • iGeelee
Quantity:

Copper Busbar Bending Machine CB-125D

       Work pressure       630Mpa
       Max stroke       200mm
       Bending thickness       12mm max of Cu/AL sheet;10mm max of steel plate sheet
       Bending width       125mm max
       Bending angle       D>90 degree angle,arbitrary angle
       Oil type       16# hydraulic oil
       Oil capacity       600ml
       Weight       82kg

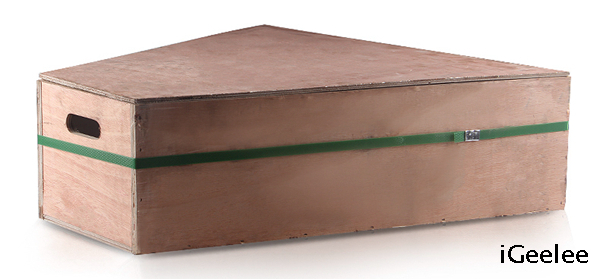

       Package       wooden case

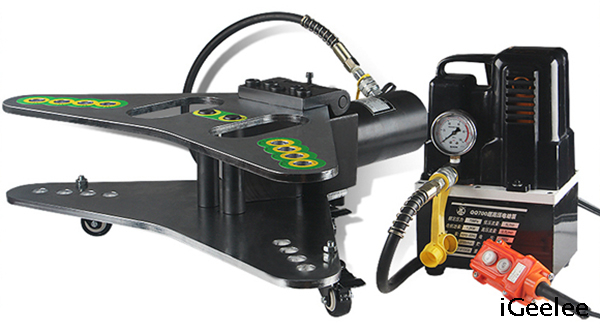

Copper Busbar Bending Machine CB-125D

 structure:

 By the hand pump(electric pump)(16);Rapid connector(2);Working cylinder(1);Side of block(3);Spent on board(4);Under the flower plate(5);Roll column(6);R template(7);Clamp die(8);Right angle die(9);United pole plate(10);Pin(11);Car(12);High pressure pipeline(13);etc.
