HT-150 Mini Hydraulic Crimper Range 4-150mm2,with Safety System inside

Share to:
sharethis sharing button
A double speed action reflected by a fast advancing speed for rapid approach of the crimping die the connector and a slower more powerful speed for crimping.
  • HT-150

  • iGeelee

Availability:
Quantity:

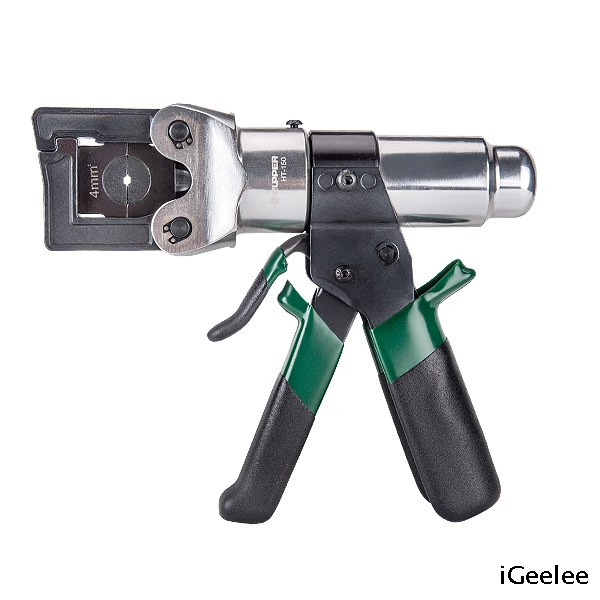

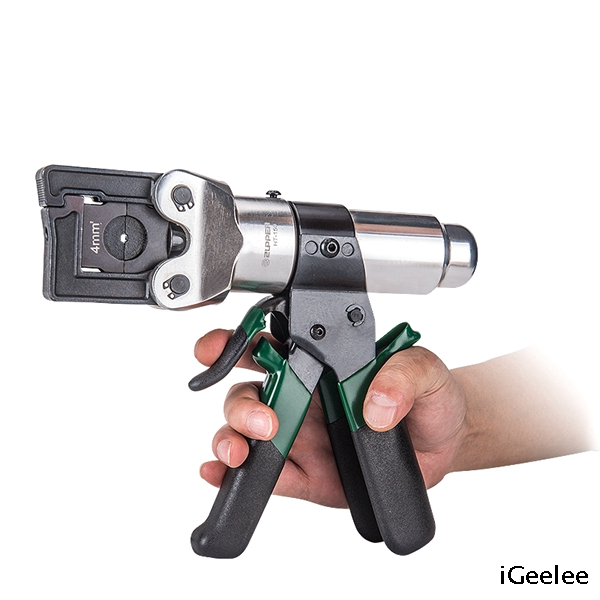

 HT-150 Mini Hydraulic Crimper 4-150mm2,with safety system inside

       Technical Parameters:
       Crimping force       35KN
       Crimping range       Cu 4-150mm2
       Stroke       9mm
       Material       Aluminum alloy
       Length       215mm
       Weight       1.36kg
       Package       Plastic box
       Crimping type       Hexagon
       Accessories
       Crimping dies: 4,6,8,10,16,25,35,50,70,95,120,150mm2



Safety system inside.
 Interchangeable dies.
 A double speed action reflected by a fast advancing speed for rapid approach of the crimping die the connector and a slower more powerful speed for crimping.
 The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, automatically pressure release. Manual retract after crimping.
