HZ-300 Hydraulic Hand Manual Hexagon Wire Cable Lug Crimping Tool for Cu Cable 16-300mm2
You are here: Home » Products » Wire Installation Tools » Cable Crimping Tools » HZ-300 Hydraulic Hand Manual Hexagon Wire Cable Lug Crimping Tool for Cu Cable 16-300mm2

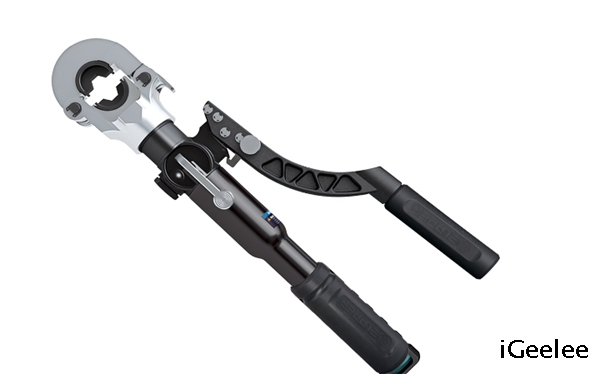

HZ-300 Hydraulic Hand Manual Hexagon Wire Cable Lug Crimping Tool for Cu Cable 16-300mm2

Share to:

The tool features a double speed action:a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for crimping

  • HZ-300
  • iGeelee
Quantity:

 HZ-300 Hydraulic Hand Manual Hexagon Wire Cable Lug Crimping Tool for Cu Cable 16-300mm2


1.Product Description:



TECHNICAL DATA

Crimping rangeCu 16-300mm²
Stroke17mm
Crimping force60KN
Crimping typehexagon crimping
lengthapprox.460mm
weightapprox.3.30kg
Packagesteel case
ACCESSORIES
Crimping dies16,25,35,50,70,95,120,150,185,240,300mm²

FEATURES

HZ-300 hydraulic crimping tool

1.The tool features a double speed action:a fast advancing speed for rapid approach of the blades to the connector  and a slower more powerful speed for crimping


2. For ease of operation and comfort the operator the tool head can be fully rotated through 350° degrees.

3. The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the pressure release system can easily be operated at any stage of compression.

4. With interchangeable dies.
