HZ-60UNV H Mulit-Function Hydraulic Crimping Punching And Cutting Tool For Cu And Al

Share to:
sharethis sharing button
1. One head for crimping,cutting and punching 2. Universal head rotates 350 degree, flip top style 3. Two stage hydraulics 4. Automatic pressure release when crimp is complete 5. Mannual retract after working

  • HZ-60UNV

  • iGeelee

Availability:
Quantity:
Inquire Add to Basket

 HZ-60UNV H Mulit-Function Hydraulic Crimping Punching And Cutting Tool For Cu And Al


TECHNICAL DATA
Item No:HZ-60UNV
Working force: 60KN
 Stroke:42mm
Cutting range:dia 40mm(Cu/Al and armoured cable)
Crimping range:Cu16-300mm2  Al10-240mm2
Punching range:dia22.5-dia61.5mm in the 3.5mm mild steel
Length:540mm
 Weight: 3.6KG
Package:Steel case
ACCESSORIES
CRIMPING DIES 16,25,35,50,70,95,120,150,185,240,300MM2

Punches&die(Type C):22.5,28.3,34.6,43.2,49.6,61.5mm

Blade:

1 set
Adapter for crimping:1 pc
Adapter for punching:1 pc
3/4",16UN Draw stud:1 pc

7/16",20UN Draw stud:

1 pc

Spacer:

1 pc
 sealing ring of cylinder: 1set
 sealing ring of safety valve: 1set



FEATURES

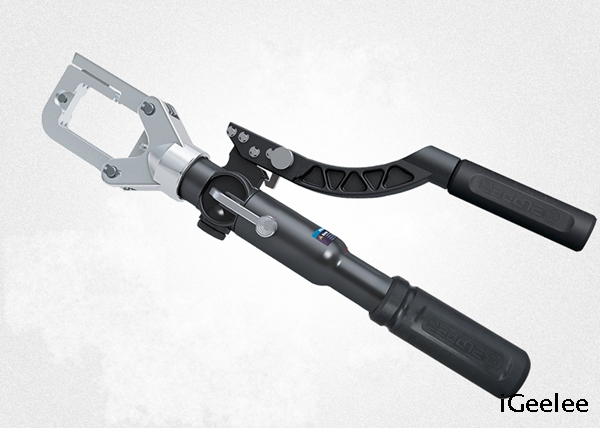

HZ-60UNV Hydraulic multi-functional cutting crimping punching tool

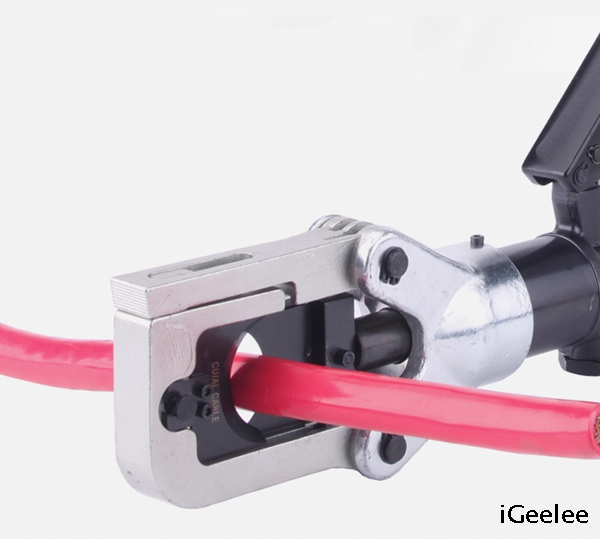

1. One head for crimping,cutting and punching

2. Universal head rotates 350 degree, flip top style

3. Two stage hydraulics

4. Automatic pressure release when crimp is complete

5. Mannual retract after working
