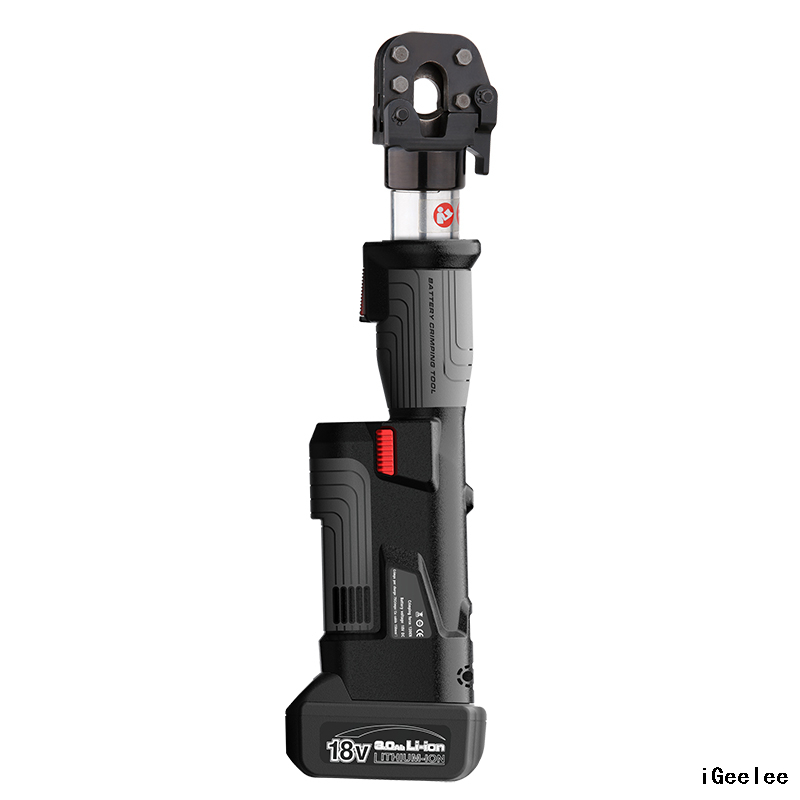

Mini Multi Functional Battery Cutter PZ-20 for Maximum Cutting Range of 21mm
You are here: Home » Products » Wire Installation Tools » Battery Cable Tools » Mini Multi Functional Battery Cutter PZ-20 for Maximum Cutting Range of 21mm
Mini Multi Functional Battery Cutter PZ-20 for Maximum Cutting Range of 21mm Mini Multi Functional Battery Cutter PZ-20 for Maximum Cutting Range of 21mm

loading

Mini Multi Functional Battery Cutter PZ-20 for Maximum Cutting Range of 21mm

Share to:
sharethis sharing button
PZ Series with the samll size and a low weight can generate high power and performance , it is the newest addtion to the mini press tool with in-line grip, 2-4 seconds crimp cycle time.
  • PZ-20

  • iGeelee

Availability:
Quantity:

EZ-20 Mini Battery Cutter for maximum cutting range of 21mm

       Technical Parameters:
       Max.output       50KN
       Stroke       26mm
       Mild iron rod       13mm
       Rebar       16mm
       Copper wire       20mm
       Aluminum wire       20mm
       Armored cable       20mm
       ASCR       21mm
       Steel wire       20mm
       Voltage of battery       18V DC Li-ion
       Capacity       1.5Ah
       Voltage       100-240V AC
       Charging time       2hours
       Accessories
       Battery       2pcs
       Charger       1pcs
       Sealing ring of cylinder       1set
       Sealing ring of safety valve       1set
       Prohibit to cut chilled steel and piano wire


 EZ-20 Mini Battery Cable Cutter, Li-ion batteries do neither have a memory effect nor self discharge.

PZ Series with the samll size and a low weight can generate high power and performance , it is the newest addtion to the mini press tool with in-line grip, 2-4 seconds crimp cycle time.


Features


CIRCUIT BOARD DIAGNOSTICKS

Alart you when the battery is low or the tool is too hot or cold.


OlED DISPLAY

*Easy reading on.

*Battery Percentage.

*Pressing Times.

*Fault Code

*Maintenance Note


180 DEGREE SWIVELLING BARREL

Easy access to connections.


TWO STAGES  HYDRAULIC SYSTEM

Hydraulic Ram Output provides more force for reliable connection.


ERGONOMIC DESIGN

With light weight and in-line grip easy work overhead and in tight spaces.
