Wire Cutting Tools EZ-45 with Battery Powered for Cutting Cu/Al And Armored Cable
You are here: Home » Products » Wire Installation Tools » Battery Cable Tools » Wire Cutting Tools EZ-45 with Battery Powered for Cutting Cu/Al And Armored Cable

Wire Cutting Tools EZ-45 with Battery Powered for Cutting Cu/Al And Armored Cable

Share to:

A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.

  • EZ-45
  • iGeelee
Quantity:

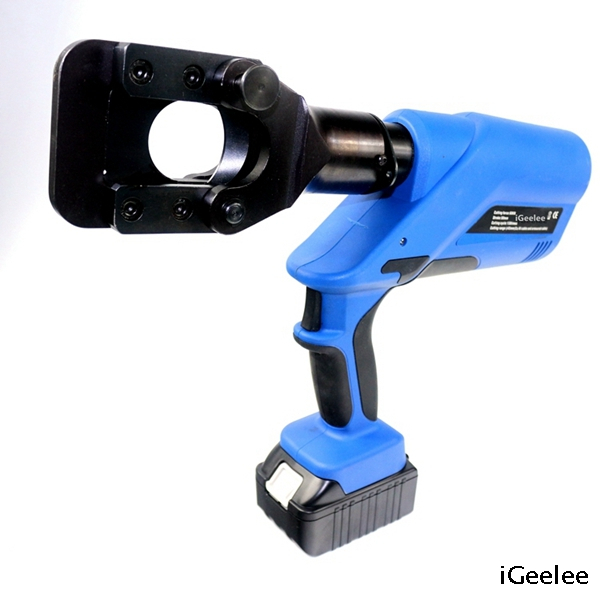

Battery Powered Cable Cutter EZ-45



Cutting Force     60KN
Stroke     50mm
Cutting range     Φ45mm (Cu/Al cable and armoured cable)
Cutting cycle     70 times
Battery voltage     18V
Battery capacity     3.0 Ah
Charging time     2hours
Package     Steel case
Accessories
Blade     1pc
Battery     2pcs
Charger     1pc
Sealing ring of cylinder     1set
Sealing ring safety valve     1set



Wire Cutting Tools EZ Series cutting tools with battery powered for cutting Cu/Al and armoured cable, which charging time for 2hours

 The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.

 A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.

 The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.

 The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.

 Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.

 A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
