Portable Copper Pipe Bending Tool TBJ-22 with Aluminum Former From 10-22mm Or 1/4-7/8 Inch
You are here: Home » Products » Pipe Installation Tools » Water & Gas Installation Tools » Portable Copper Pipe Bending Tool TBJ-22 with Aluminum Former From 10-22mm Or 1/4-7/8 Inch

Portable Copper Pipe Bending Tool TBJ-22 with Aluminum Former From 10-22mm Or 1/4-7/8 Inch

Share to:

iGeelee Portable Copper Pipe Bending Tool TBJ-22 with aluminum former from 10-22mm or 1/4-7/8 inch,Sets include Basic Tool, bending support with bending segments, bending formers, in plastic case.

  • TBJ-22
  • iGeelee
Quantity:

Portable Copper Pipe Bending Tool TBJ-22 with Aluminum Former From 10-22mm Or 1/4-7/8 Inch
For accurate one handed bending up to 90º, 10-22mm(1/4"-7/8")
Accurate bending even in restricted spaces. Quick and simple change of the bending formers.
One handed operation through in ergonomic design.


ITEM NOAluminum Former
Former in inch Former in metric
SizeWeightSizeWeight
1/4"0.09kg10mm0.20kg
5/16"0.09kg12mm0.24kg
3/8"0.08kg14mm0.30kg
1/2"0.13kg15mm0.30kg
5/8"0.145kg16mm0.30kg
3/4"0.19kg18mm0.38kg
7/8"0.22kg20mm0.41kg
                22mm0.42kg

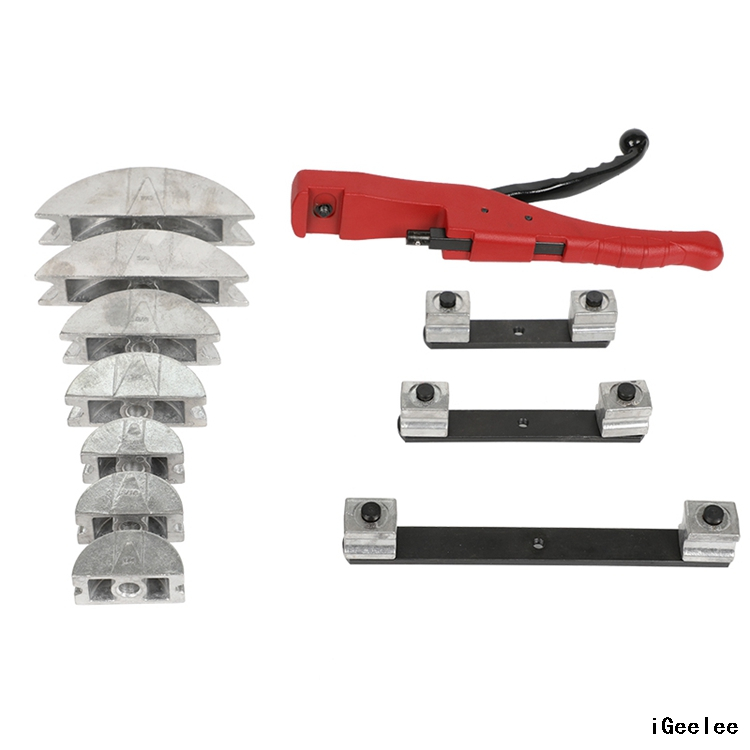

Sets include Basic Tool, bending support with bending segments, bending formers, in plastic case.


1 Designed to bend soft copper and coated soft copper of 10mm to 22mm as well as multilayer pipe up to 26mm.
Unique sliding mechanism places formers quickly in correct tube diameter position.
2 For sanitary, heating air conditioning, refrigerating and hydraulic application:
Also for copper thin-walled heating tubes according to DIN EN 1057 and for tubes of press fitting systems.
3 No costs for fittings, storage, procurement. Savings in soldering joints, pressing joints ans working hours.
4. TBJ-22-REV  has special reverse direction bending function.
