Copper Hydraulic Punch Driver CH-70 for Max 12mm of The Cu/AI Bus Bar/ Angle Steel
You are here: Home » Products » Busbar Processing Machine » Hole Punch Tools » Copper Hydraulic Punch Driver CH-70 for Max 12mm of The Cu/AI Bus Bar/ Angle Steel

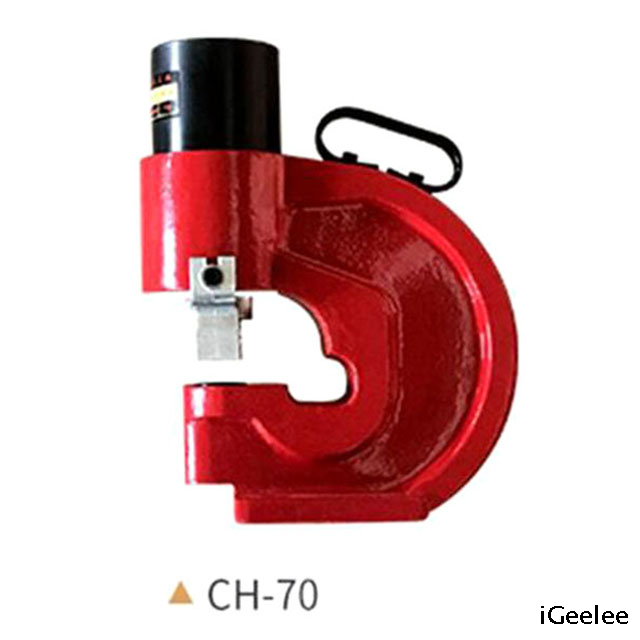

Copper Hydraulic Punch Driver CH-70 for Max 12mm of The Cu/AI Bus Bar/ Angle Steel

Share to:

Hydraulic Punch Driver can work on 12mm max For copper/Al sheet and angle steel sheet. It can work with manual pump or electric pump.

  • CH-70/ CH-70L
  • iGeelee
Model:
Quantity:

 Copper Hydraulic Punch Driver CH-70 for Max 12mm of The Cu/AI Bus Bar/ Angle Steel



         Punching force




         35T




         Max thickness of sheet




        12mm of copper sheet/
         10 mm of metal sheet




         Depth of throat




         110mm




         Height




         approx.460mm




         Weight




         approx.38kg




         Package




         wooden case




         Accessories




         3/8"(Φ10.5), 1/2"(Φ13.8), 5/8"(Φ17), 3/4"(Φ20.5)mm




         Note


It is used for punching Cu/Al plate,

can match pumps CP-700, HP-700A or electric pump.





 Copper Hydraulic Punch Driver Features

 1 It is designed for punching holes on Cu/AI bus bar.

 2 Punching the different kind metal sheet up to 12mm.

 3 This type of hydraulic punch driver can match up hand pump CP-700/ CP-700A or electric pump.
