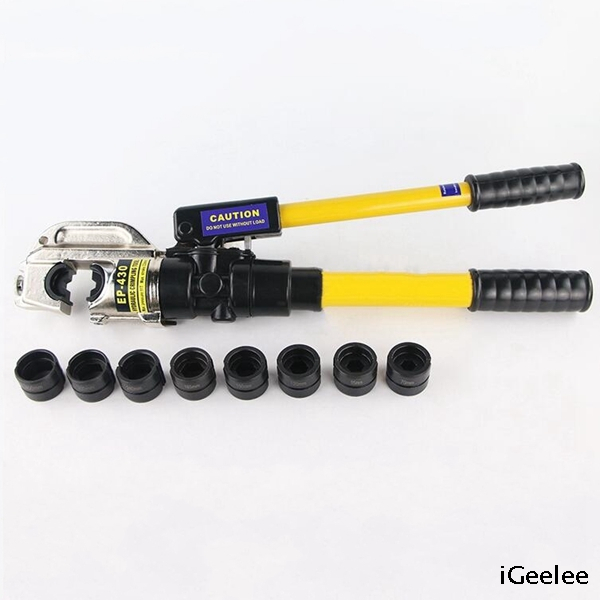

EP-430 Hydraulic Compression Tool for 50-400mm2 Lugs, with Tonnage of 120KN

Share to:
sharethis sharing button
Hydraulic Crimper Tool Features 1 Design to accommodate hexagonal, dies of the Compression tool for applying compression fittings too copper, aluminum conductors. 2 Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action. 3 Automatic retraction when the pressure when the pressure of the compression tool reaches 700kg/cm2(12T) reached. 4 The glass fiber operation insulates the stick, can bear the electric voltage 200KV, keeping on the minute. 5 The type of the hydraulic compression tool with 180 degree rotatable head. 6 The pressure outside the body adjusts to press the valve.
  • EP-430

  • iGeelee

Availability:
Quantity:

EP-430 Hydraulic Compression Tool for 50-400mm2 Lugs, with Tonnage of 120KN

Crimping Range     Cu 16-400mm2
Crimping Force     12T
Crimping Type    hexagon crimping
Stroke     32mm
Oil capacity     145CC
Weight     approx.6.5kg
Package     Plastic case
Standard Accessories     16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2



Hydraulic crimping tool from 16-400mm2,is a professional tool for applying compression lugs to copper,aluminum conductors with different type.

 Hydraulic Crimper Tool Features

 1 Design to accommodate hexagonal, dies of the Compression tool for applying compression fittings too copper, aluminum conductors.

 2 Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.

 3 Automatic retraction when the pressure when the pressure of the compression tool reaches 700kg/cm2(12T) reached.

 4 The glass fiber operation insulates the stick, can bear the electric voltage 200KV, keeping on the minute.

 5 The type of the hydraulic compression tool with 180 degree rotatable head.

 6 The pressure outside the body adjusts to press the valve.
