Hydraulic Tools To Make Your Job Easier!
| Quantity: | |
|---|---|
| Crimping Range | Cu 10-240mm2(500MCM) |
| Crimping Force | 60KN |
| Crimping Type | hexagon crimping |
| Stroke | 15mm |
| Length | 380mm |
| Weight | approx.2.8kg |
| Package | plastic case |
| Standard Accessories | 10,16,25,35,50,70,95,120,150, 185, 240mm2 |

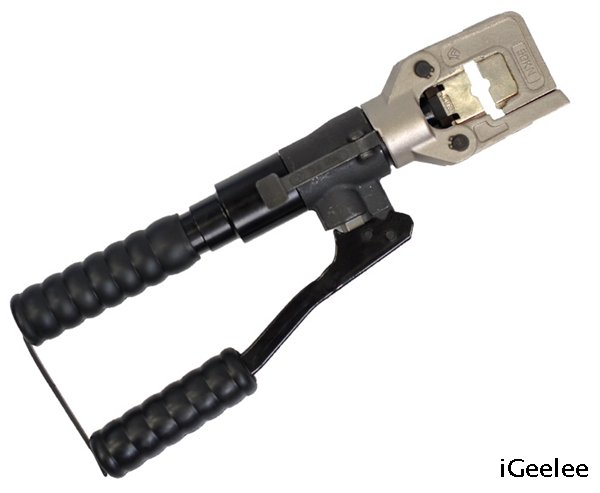

HT-51 Hydraulic Crimping Tool
This type of tool is designed to accept dies for BEKU type mechanical tool,widely used in Europe
Hydraulic crimping tool with plating blue-white head ,applicable to press connection of cable copper
and aluminum terminal.
1) hydraulic crimping tool Application range:suitable for compression of electrical
connectors on conductors up to 240 sqmm (500MCM)
2) Automatic restoration when the pressure reach 700kg/cm2
3) hydraulic crimping tool with 180-degree rotatable head
4) Hydraulic Crimping force: 6T
5) Dimensions:
Length:380mm
Width-(handle closed): 130
Width -(handles open): 295mm
6) Hydraulic oil:K32
*Light weight,compact and slim design is ideal for connection in the switch box.
*Accepts Cembre type dies .
*Yoke and latcth type head for easy die changeover and easy removal of jointed conductor.
*built-in bypass relief valve .
*Small handle spread
| Crimping Range | Cu 10-240mm2(500MCM) |
| Crimping Force | 60KN |
| Crimping Type | hexagon crimping |
| Stroke | 15mm |
| Length | 380mm |
| Weight | approx.2.8kg |
| Package | plastic case |
| Standard Accessories | 10,16,25,35,50,70,95,120,150, 185, 240mm2 |
HT-51 Hydraulic Crimping Tool
This type of tool is designed to accept dies for BEKU type mechanical tool,widely used in Europe
Hydraulic crimping tool with plating blue-white head ,applicable to press connection of cable copper
and aluminum terminal.
1) hydraulic crimping tool Application range:suitable for compression of electrical
connectors on conductors up to 240 sqmm (500MCM)
2) Automatic restoration when the pressure reach 700kg/cm2
3) hydraulic crimping tool with 180-degree rotatable head
4) Hydraulic Crimping force: 6T
5) Dimensions:
Length:380mm
Width-(handle closed): 130
Width -(handles open): 295mm
6) Hydraulic oil:K32
*Light weight,compact and slim design is ideal for connection in the switch box.
*Accepts Cembre type dies .
*Yoke and latcth type head for easy die changeover and easy removal of jointed conductor.
*built-in bypass relief valve .
*Small handle spread
