Hydraulic Crimping Head CO-1000 Range From 400-1000mm2 with A Working Pressure of 700 Bar Max

Share to:
sharethis sharing button
It is applicable to professional use of projects inside and outside distribution house. Various connection metals and overhead underground cable.
  • CO-1000

  • iGeelee

Availability:
Quantity:

Hydraulic Crimping Head CO-1000 Range From 400-1000mm2 with A Working Pressure of 700 Bar Max

Crimping Range    Cu 400-1000mm2
Crimping Force     55T
Crimping Type    hexagon crimping
Stroke     24mm
Length   380mm
Weight     approx.32kg
Package     steel case
Standard Accessories     400, 500, 630, 800, 1000mm2

It can match pump    CP-700, DYB-63A

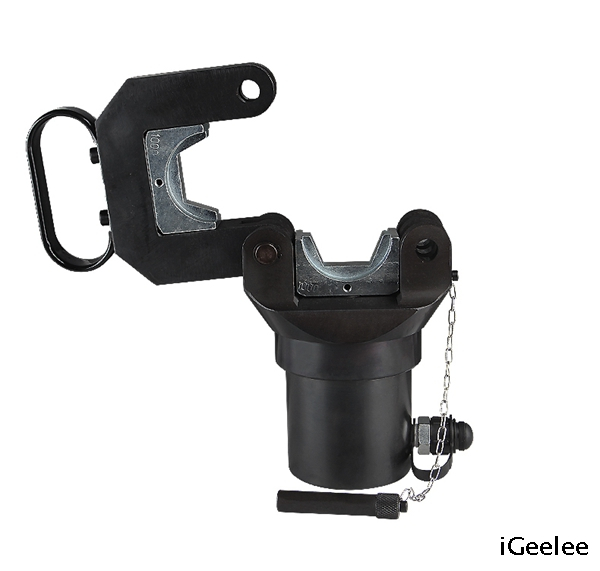

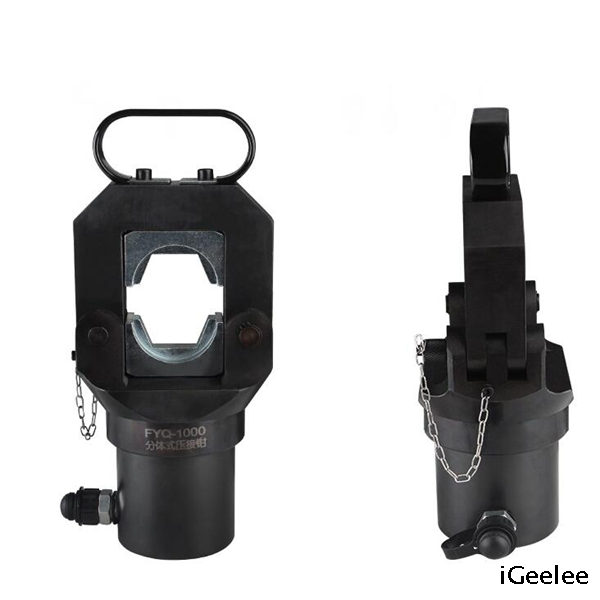

Hydraulic cable lug compression head from 400-1000mm2,is a professional tool for crimping copper and aluminum lugs with different types.

 1 It is applicable to professional use of projects inside and outside distribution house.

 Various connection metals and overhead underground cable.

 2 Hydraulic press head with quick automatic coupler for connection to a hydraulic pump with a working

 pressure of 700 bar max.
