Hydraulic Pliers CYO-400C for Pressing Cu And Aluminum 16-400mm2 Connectors
You are here: Home » Products » Wire Installation Tools » Cable Crimping Tools » Hydraulic Pliers CYO-400C for Pressing Cu And Aluminum 16-400mm2 Connectors

Hydraulic Pliers CYO-400C for Pressing Cu And Aluminum 16-400mm2 Connectors

Share to:

The glass fiber operation insulates the stick, the crimping tool can bear the electric voltage 200KV, keeping on the minute.

  • CYO-400C
  • iGeelee
Quantity:

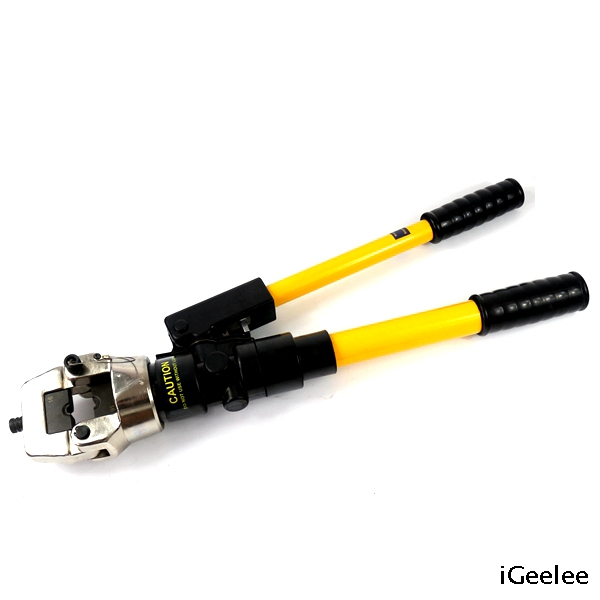

Hydraulic Pliers CYO-400C for Pressing Cu And Aluminum 16-400mm2 Connectors

Crimping Range     Cu 16-400mm2
Crimping Force     116KN
Crimping Type    hexagon crimping
Stroke     22mm
Oil capacity    145CC
Weight     approx. 6.8kg
Package     Plastic case

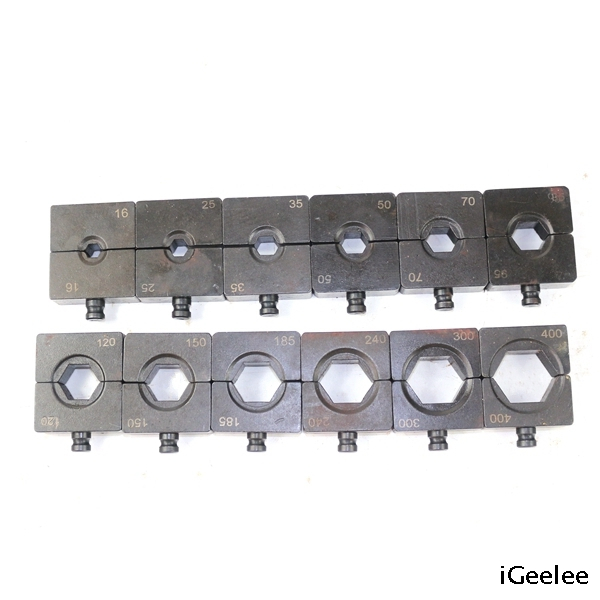

Standard Accessories     16, 25, 35, 50,70, 95, 120, 150, 185, 240, 300, 400 mm2



Hydraulic Plier

1 Design to accommodate hexagonal, dies for applying compression fittings to copper, aluminum conductors.
2 Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.
3 Automatic retraction when the pressure of crimping tool reaches 700kg/cm2 reached.
4 The glass fiber operation insulates the stick, the crimping tool can bear the electric voltage 200KV, keeping on the minute.
5 Hydraulic crimping tool with 180 degree rotatable head.
6 The pressure of the crimping tool outside the body adjusts to press the valve.
