Hydraulic Wire Crimper Tool EP-510 for Cu 50-400mm2,crimping Force of 126KN for Compression Lugs To Copper,aluminum Conductors
You are here: Home » Products » Wire Installation Tools » Cable Crimping Tools » Hydraulic Wire Crimper Tool EP-510 for Cu 50-400mm2,crimping Force of 126KN for Compression Lugs To Copper,aluminum Conductors

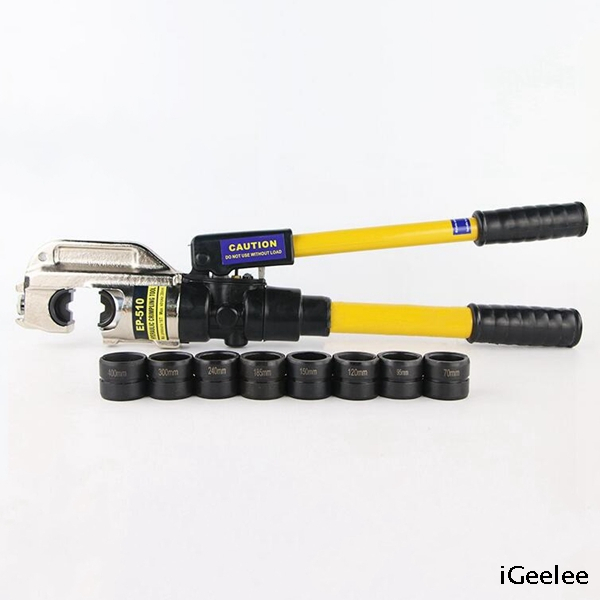

Hydraulic Wire Crimper Tool EP-510 for Cu 50-400mm2,crimping Force of 126KN for Compression Lugs To Copper,aluminum Conductors

Share to:

Hydraulic Wire Crimping Tool from 16-400mm2,is a professional tool for crimping copper and aluminum lugs with different types, range Cu 50-400mm2, Crimping dies: 50,70,95,120,150,185,240,300,400mm2

  • EP-510
  • iGeelee
Quantity:

Hydraulic Wire Crimping Tool EP-510(Safety valve inside)

Crimping Range     Cu 16-400mm2
Crimping Force     130KN
Crimping Type    hexagon crimping
Stroke    32mm
Oil capacity     145CC
Weight   approx.7.2kg
Package   Plastic case
Standard Accessories    16,25,35,50,70,95,120,150,185,240,300, 400mm2



Hydraulic Wire Crimping Tool from 16-400mm2,is a professional tool for crimping copper and aluminum lugs with different types, range Cu 50-400mm2, Crimping dies: 50,70,95,120,150,185,240,300,400mm2

 1 Design to accommodate hexagonal, dies of the Compression tool for applying compression fittings too copper, aluminum conductors.

 2 Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.

 3 Automatic retraction when the pressure when the pressure of the compression tool reaches 700kg/cm2(12T) reached.

 4 The glass fiber operation insulates the stick, can bear the electric voltage 200KV, keeping on the minute.

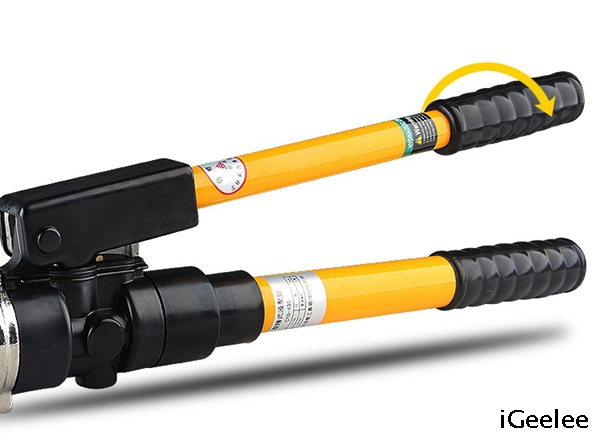

 5 The type of the hydraulic compression tool with 180 degree rotatable head.

 6 The pressure outside the body adjusts to press the valve.
