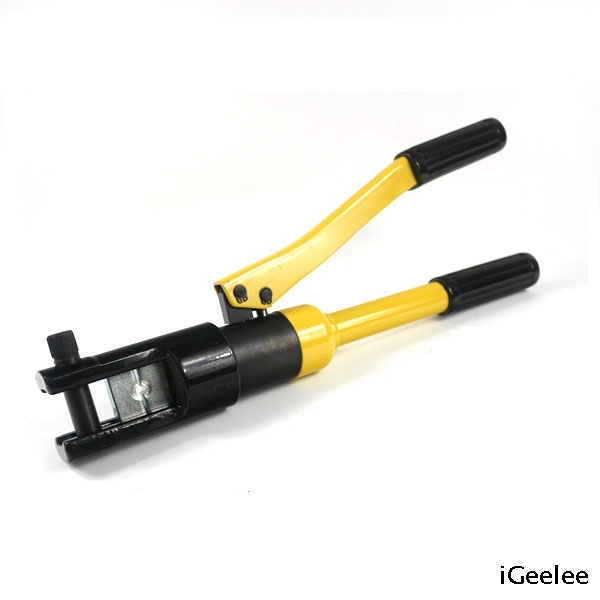

YQK-120 Hydraulic Power Crimping Tool 10-120mm2, H Type Rotated Head

Hydraulic crimping tool from 10-120mm2,is a professional tool for crimping copper and aluminum lugs with different types.

Model:
YQK-120
Brand:
iGeelee

Availability:

Quantity:



Inquire Add to Basket

Technical Data Sheet

Hydraulic Power Crimping Tool YQK-120

Crimping Range	Cu 10-120mm2
Crimping Force	12T
Crimping Type	hexagon crimping
Stroke	13mm
Length	425mm
Weight	approx.4.0kg
Package	plastic case
Standard Accessories	10,16,25,35,50,70,95,120mm2

Hydraulic Crimping Tool Specifications

ITEM NO	Crimping range	Crimping force	Crimping type	Stroke	Package	Accessories
YQK-120	Cu 10- 120mm²	12T	Hexagon	14mm	Plastic box	10, 16, 25, 35, 50, 70, 95, 120 mm²
YQK-240	Cu 16 - 240mm²	16T	Hexagon	22mm	Plastic box	16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm²
YQK-300	Cu 10 - 300mm	16T	Hexagon	22mm	Plastic box	10,16,25,35,50,70,95,120,150,185,240,300mm²

Hydraulic crimping tool from 10-120mm2,is a professional tool for crimping copper and aluminum lugs with different types.
Hydraulic crimping tool is a processional tool for crimping copper and aluminum lugs with different types, a wide range of crimping
dies from 4 mm² to 1000 mm² to suit for different size demand. The main crimping shape is hexagonal, special shape design is
provided by special making
